Product Code: 18102
Product frequency: 2.4GHz (supports multiple cars competing on the same field)

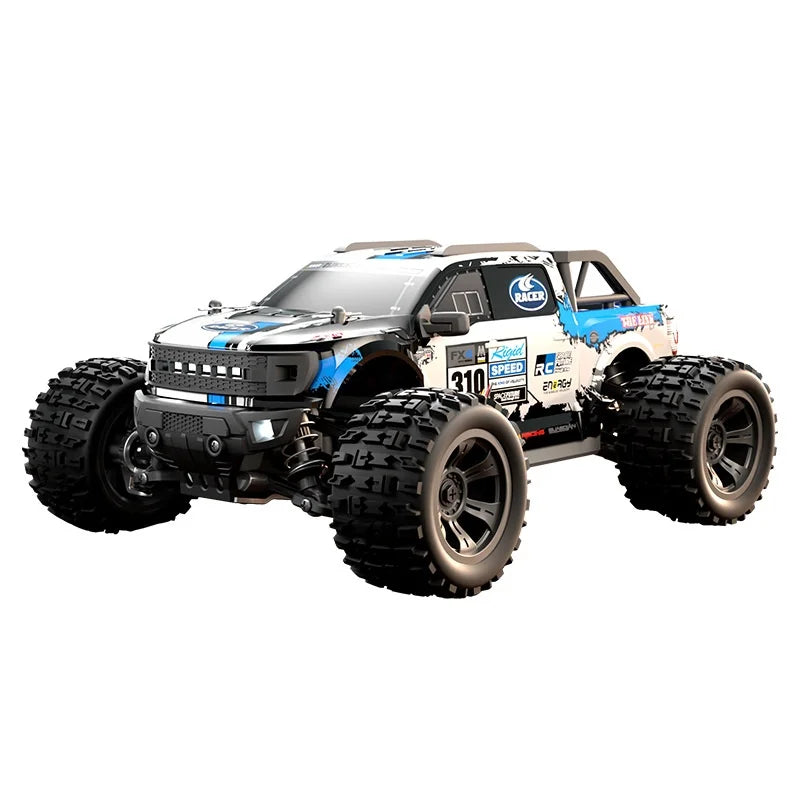

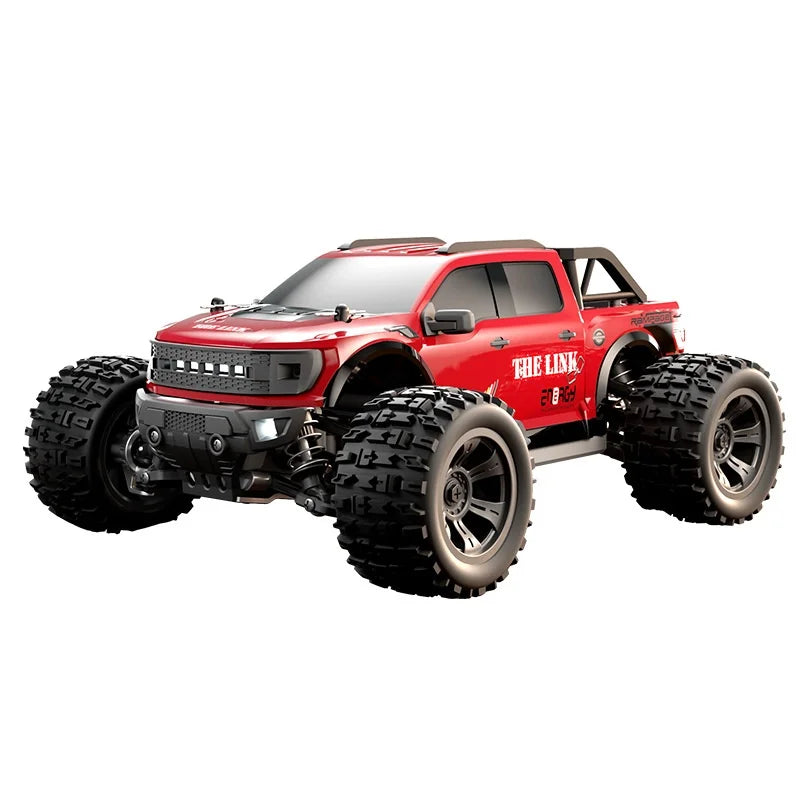

Product Name: Fully Proportional Remote Control Four wheel Drive Bigfoot (Raptor) 1:18
Product Color: Flower Blue/Red
Product Materials: Hardware/Electronics/Plastic
Product speed (km/h): 30-40

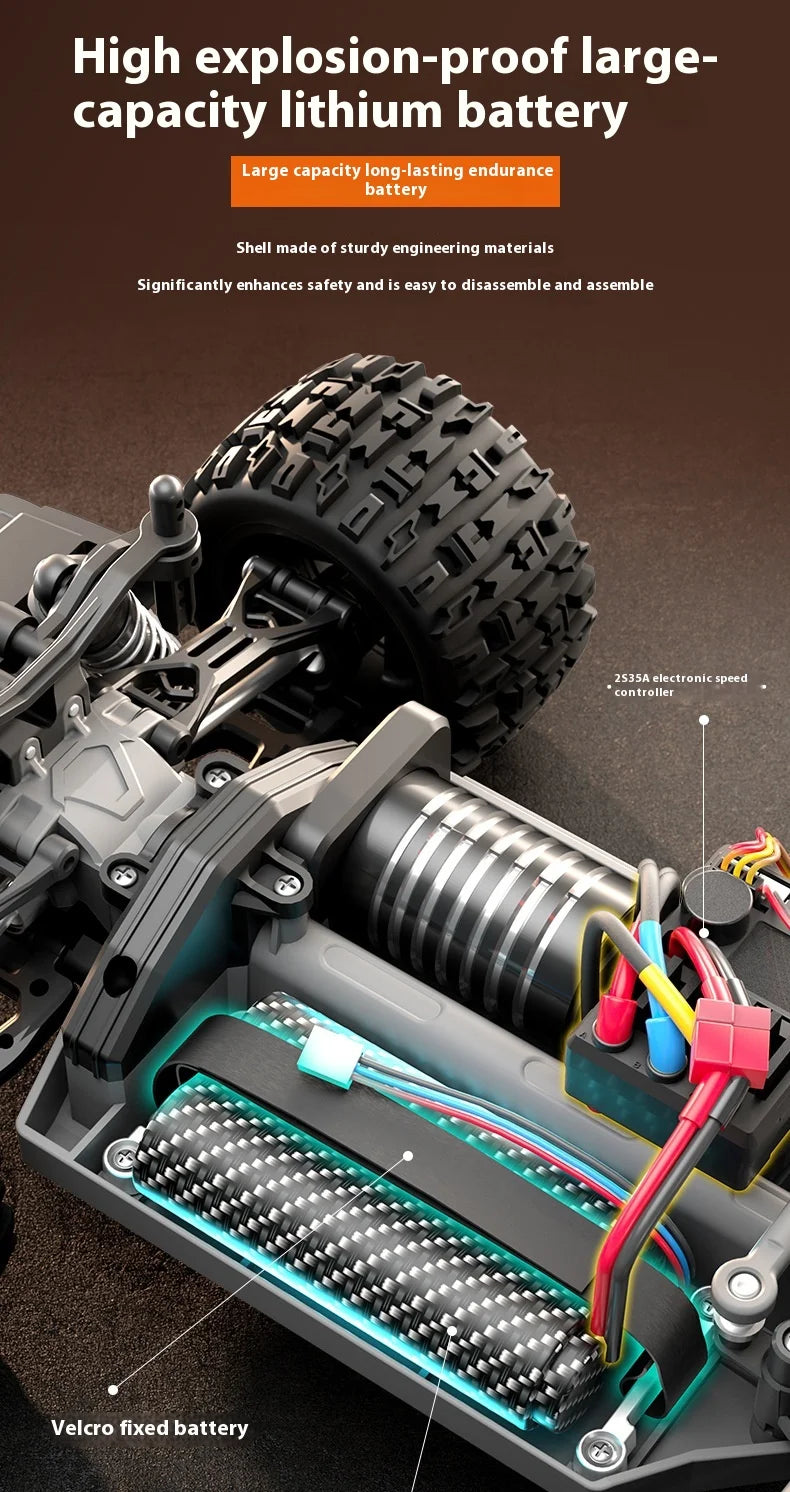

Product battery: 7.4V 1500mAH 5C lithium-ion battery (T plug)
Remote control battery: 3 * "AA" (to be purchased separately)
Charging: USB cable charger
Remote control time (minutes): about 30 (continuous full speed running)
Charging time (minutes): 240-270 (USB balanced charging)
Remote control distance (meters): ≥ 80
Servo: 5-wire, 17g
Car light configuration: LED front white light, center white light

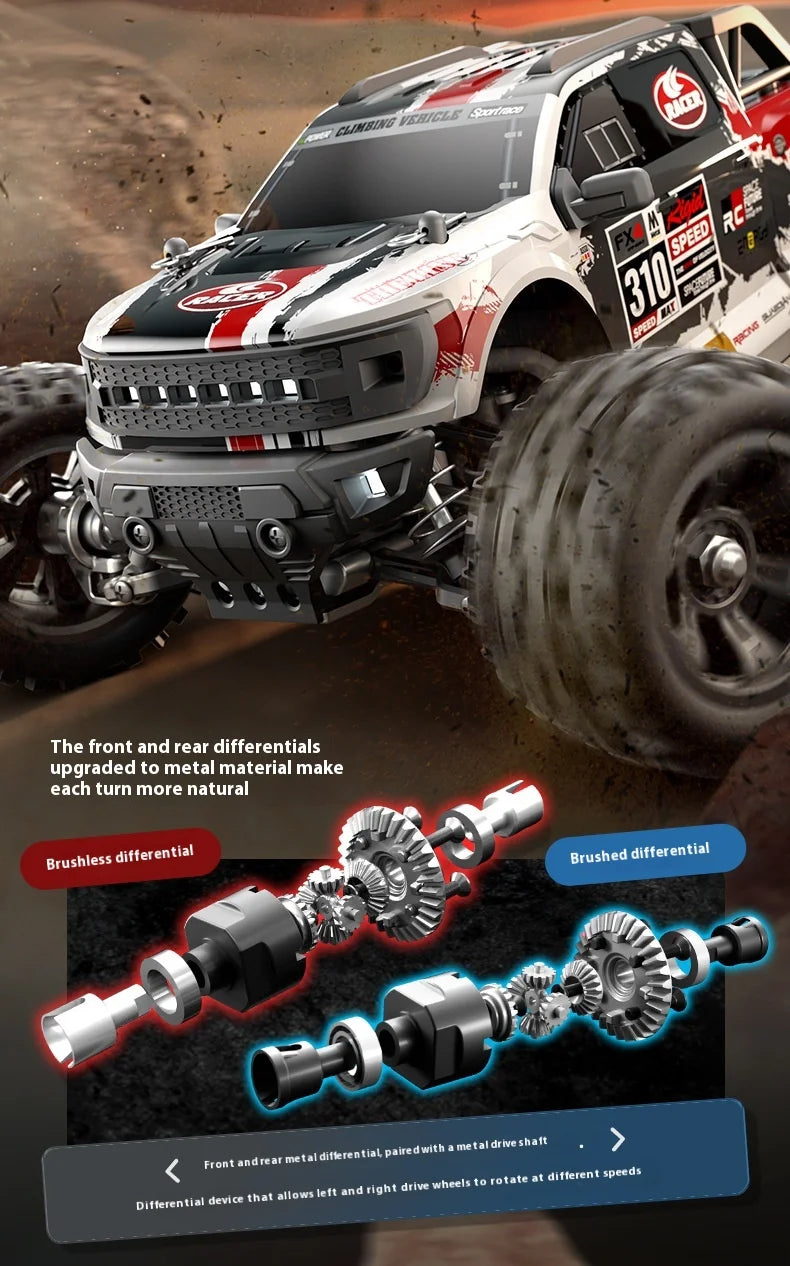

Differential structure: metal differential (planetary gear)

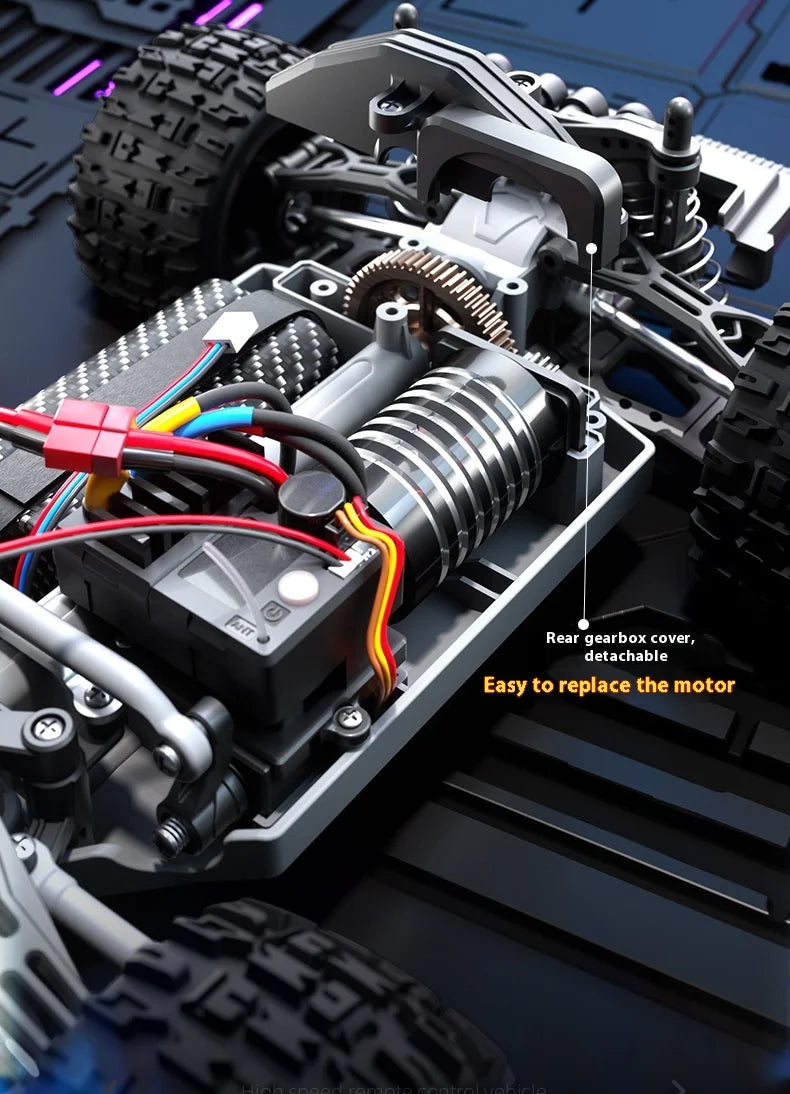

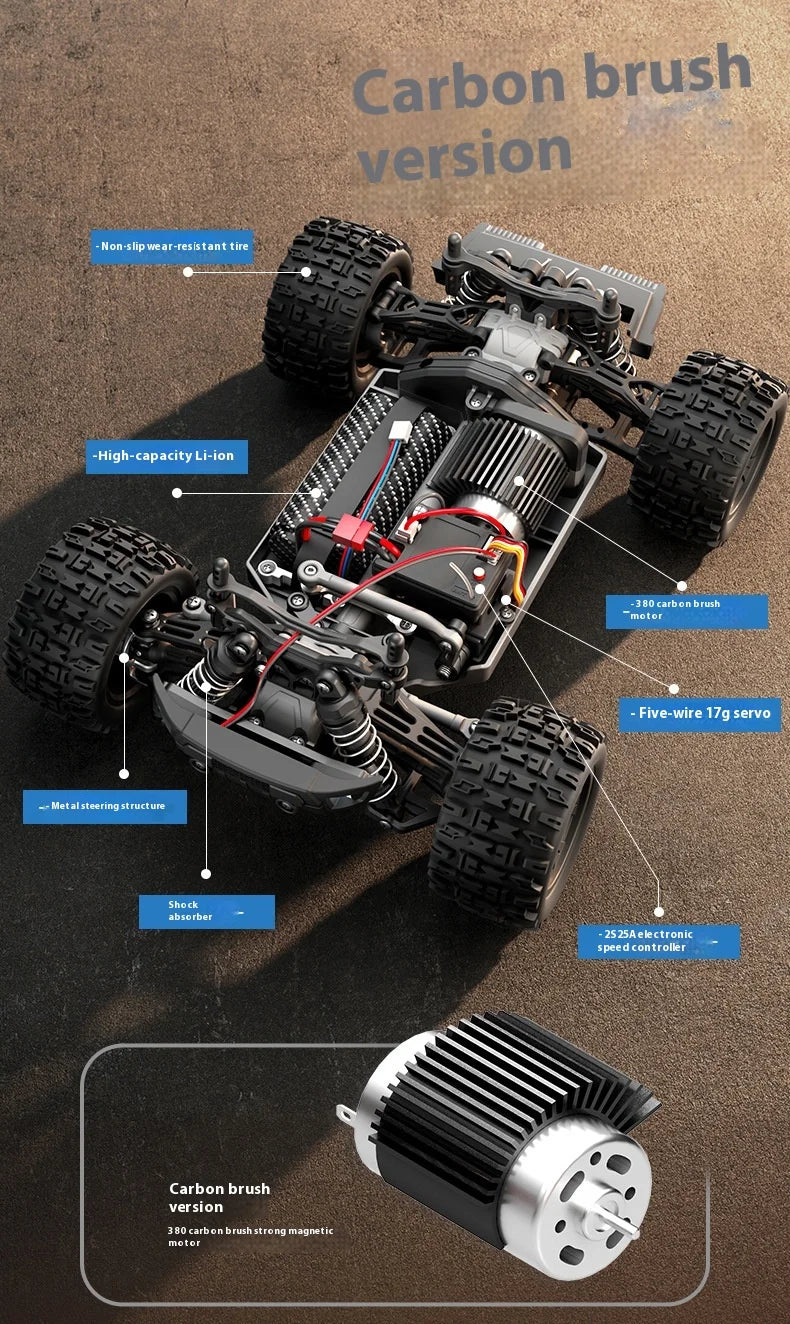

Motor: RC380 high-speed carbon brush strong magnet (magnetic protection+heat sink)

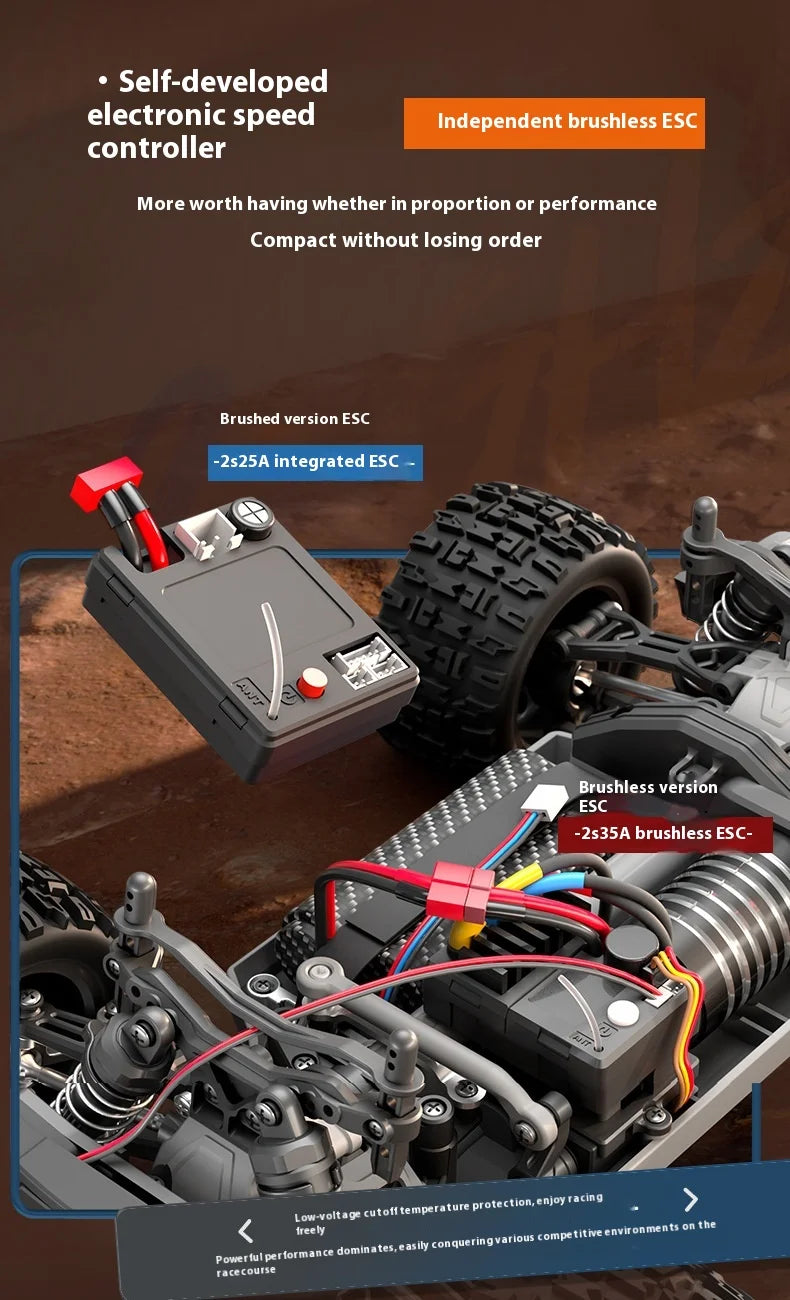

Electric tuning/reception: 25A 2S integrated control (splash proof)

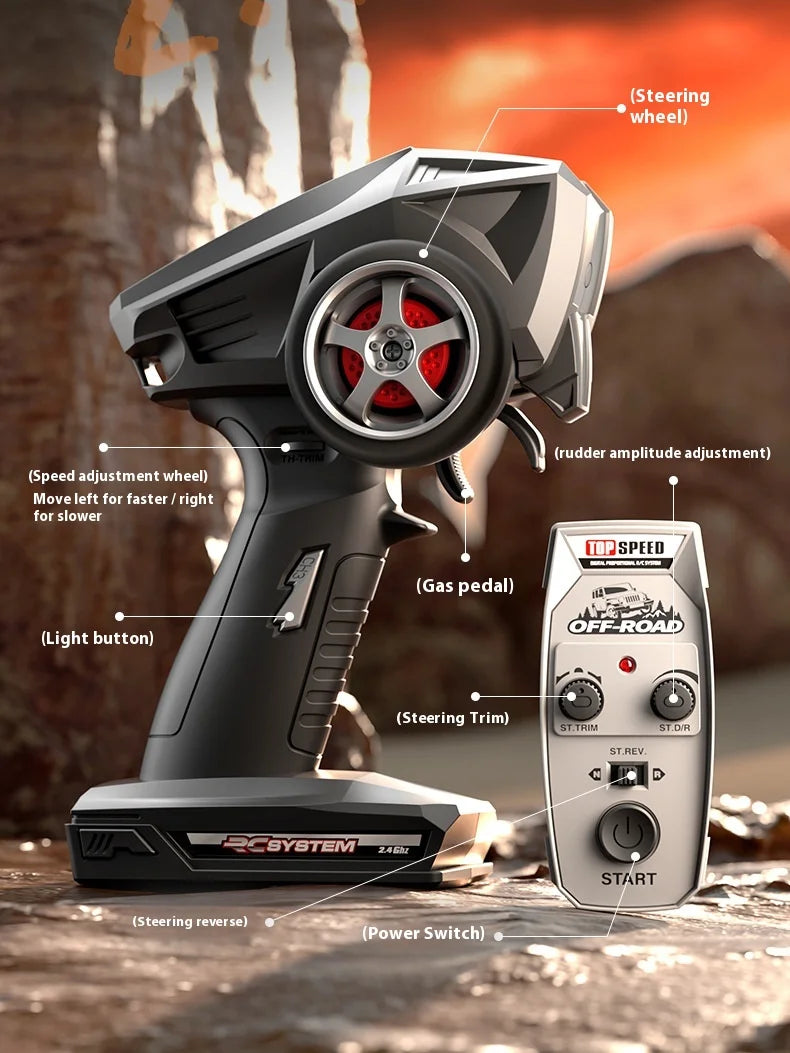

Remote control category: Fully proportional synchronous control system (gun control)

Product Code: 18102
Product frequency: 2.4GHz (supports multiple cars competing on the same field)
Product Name: Fully Proportional Remote Control Four wheel Drive Bigfoot (Raptor) 1:18
Product Color: Flower Blue/Red
Product Materials: Hardware/Electronics/Plastic
Product speed (km/h): 30-40
Product battery: 7.4V 1500mAH 5C lithium-ion battery (T plug)
Remote control battery: 3 * "AA" (to be purchased separately)
Charging: USB cable charger
Remote control time (minutes): about 30 (continuous full speed running)
Charging time (minutes): 240-270 (USB balanced charging)
Remote control distance (meters): ≥ 80
Servo: 5-wire, 17g
Car light configuration: LED front white light, center white light
Differential structure: metal differential (planetary gear)
Motor: RC380 high-speed carbon brush strong magnet (magnetic protection+heat sink)
Electric tuning/reception: 25A 2S integrated control (splash proof)
Remote control category: Fully proportional synchronous control system (gun control)

Wheelbase parameters (mm): Wheelbase: 165mm Wheelbase: 155mm Wheel diameter: 67mm
Single weight (including battery) Kg: 0.85
Single packaging weight (including color box) 1.5Kg
7.4V 1500mAH Weight (g): 91.7
Gross weight/net weight (kg): 13.5/12
Remote control specifications (cm): 12.6 * 8.2 * 18.5

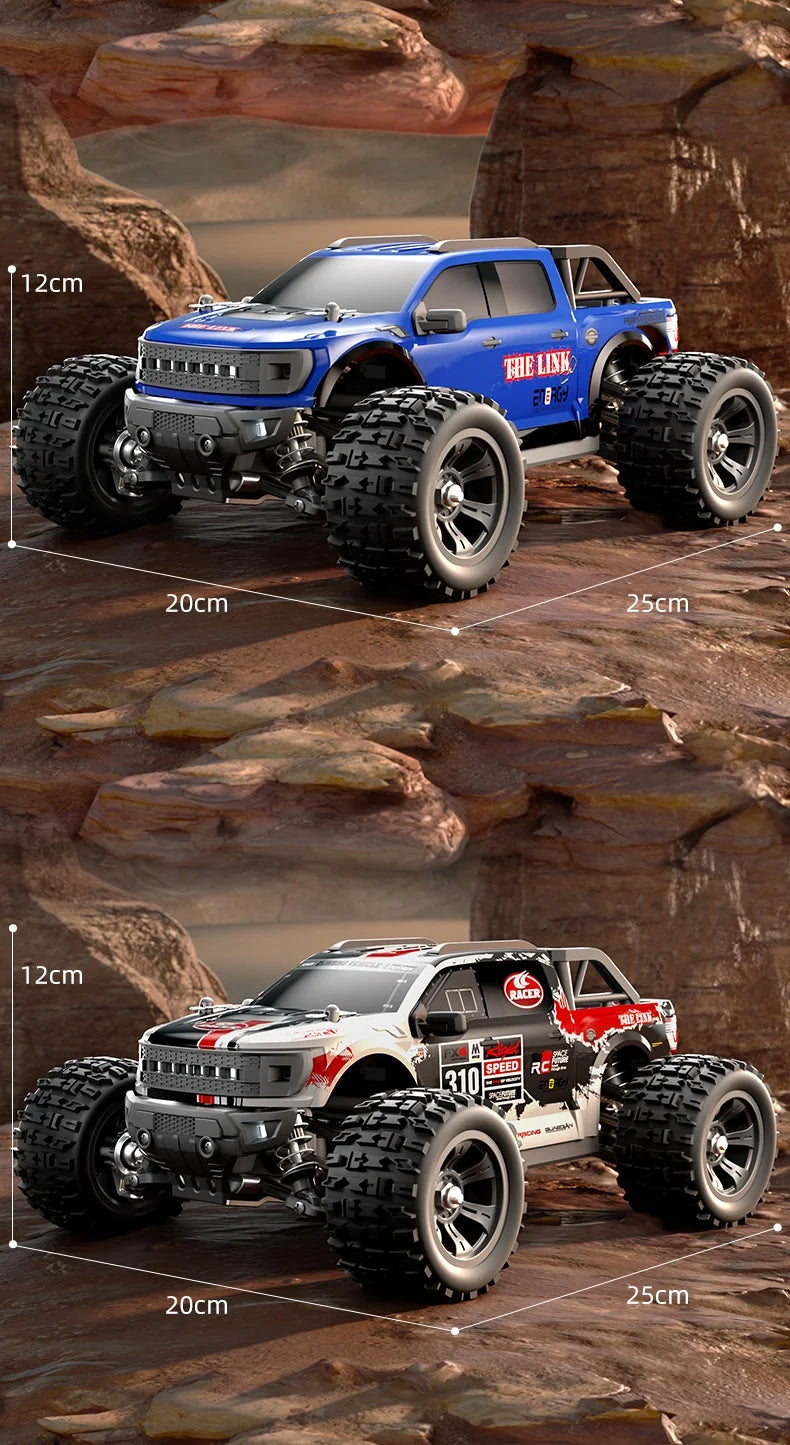

Product specifications (cm): 25 * 19 * 11
Color box size (cm): 26.3 * 16.5 * 22
Box size (cm): 54 * 34 * 47
Packing quantity (pcs): 8

1: Charging protection: Constant current and constant voltage balanced charging, providing protection against overcharging and overcurrent of the battery.
2: Motor anti jamming protection: When overloaded, the motor stops working.
3: High temperature protection: When the working temperature is higher than the set condition, the drive control circuit stops working and resumes working after the temperature drops to a safe value.
4: The function of reducing voltage and cutting off power automatically shuts off when the battery is below 6.3-6.4V to prevent damage caused by overdischarging.

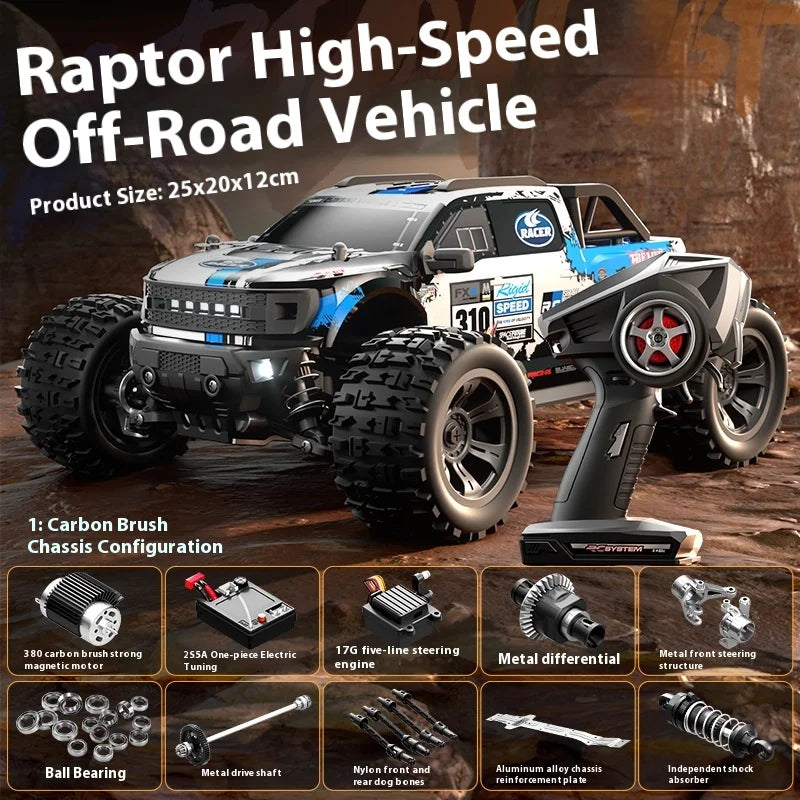

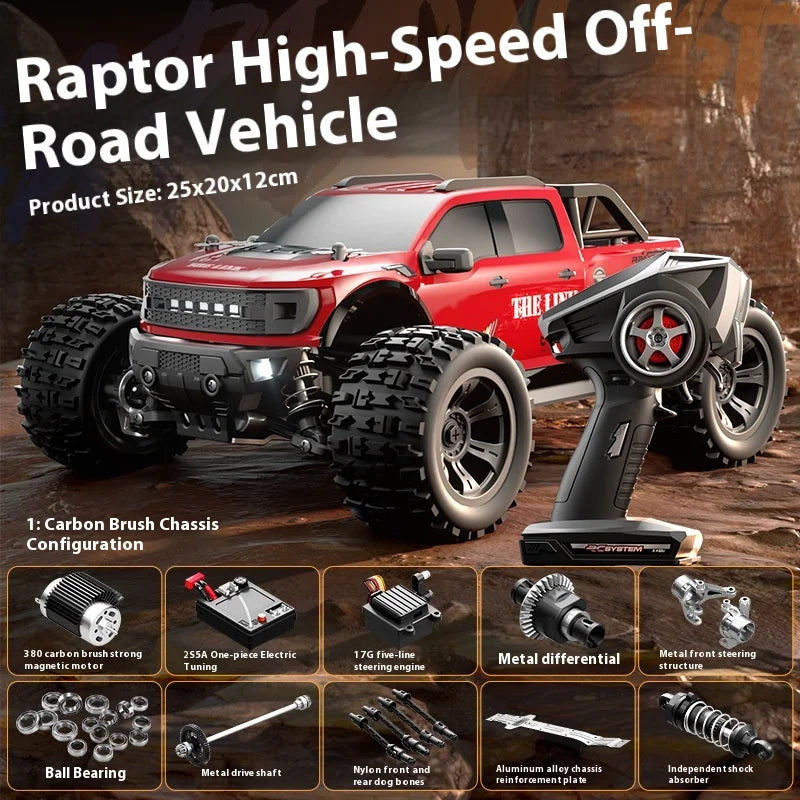

Product configuration:
1) Whole vehicle; 2) Remote control; 3) Chinese and English manuals; 4) Lithium batteries; 5) USB charger; 6) Shock absorption adjustment buckle ring; 7) Metal pin; 8) Cross screwdriver;

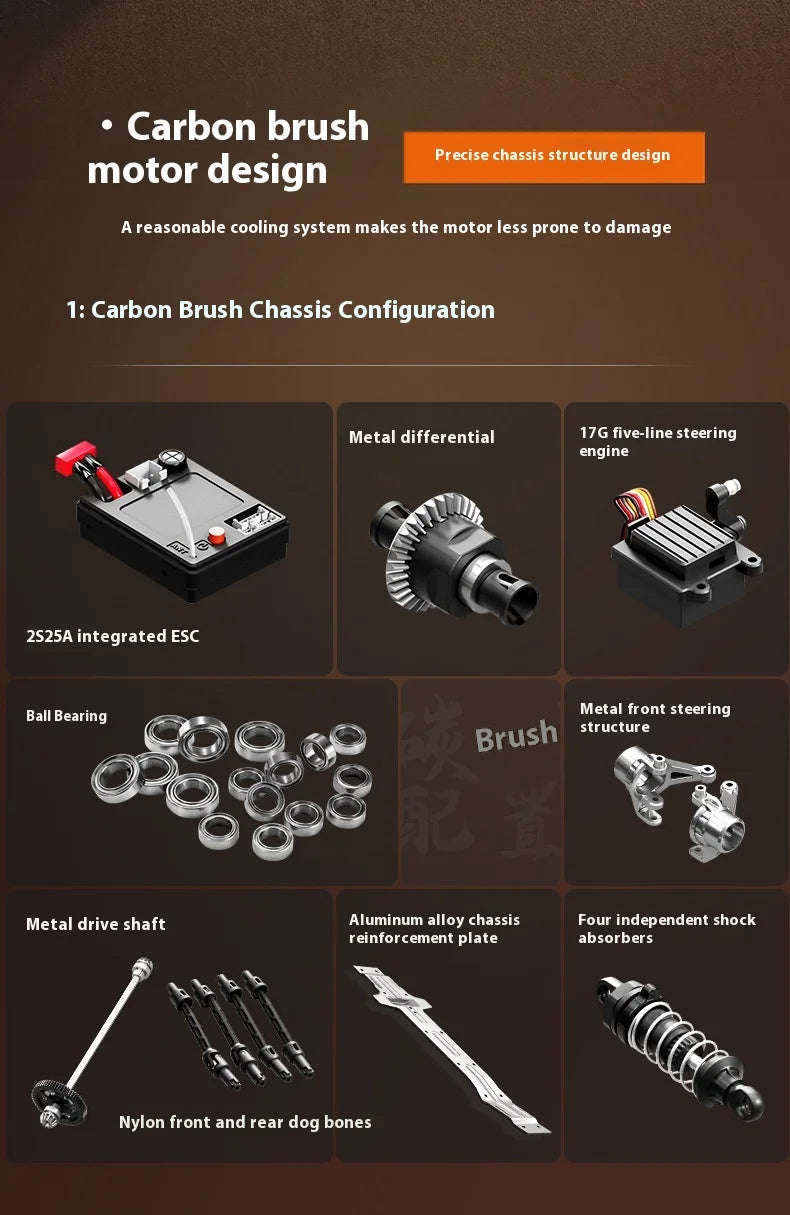

Product parameters:
1. Adopting a simulation structure design, it has a real car handling feel, achieving full proportional continuously variable transmission, high-speed driving, rapid acceleration, deceleration, braking, reverse, left turn, right turn;
2. Applicable venues: flat land, sandy land, muddy land, grassland.

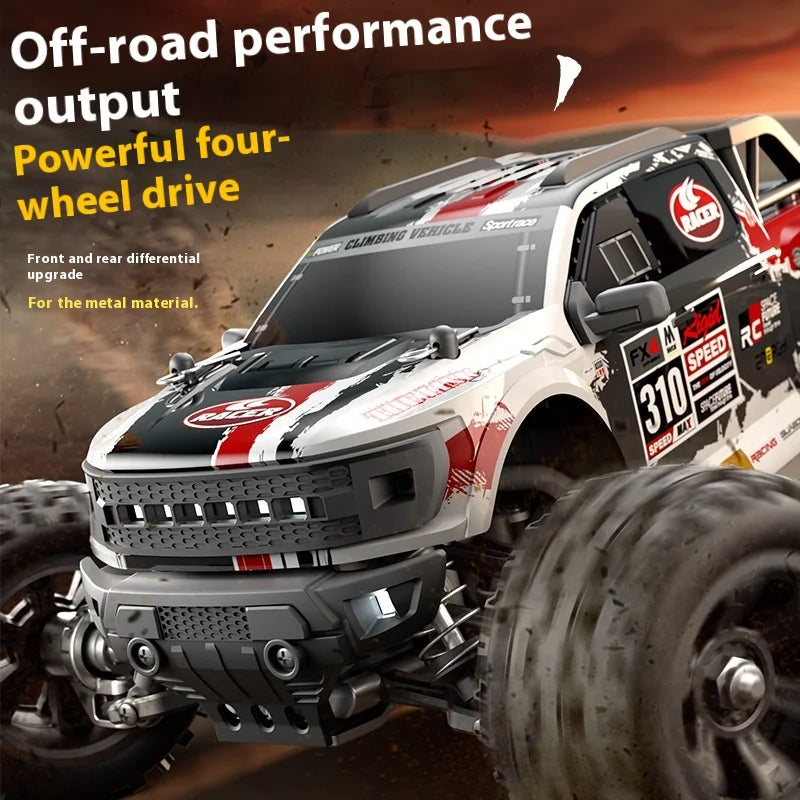

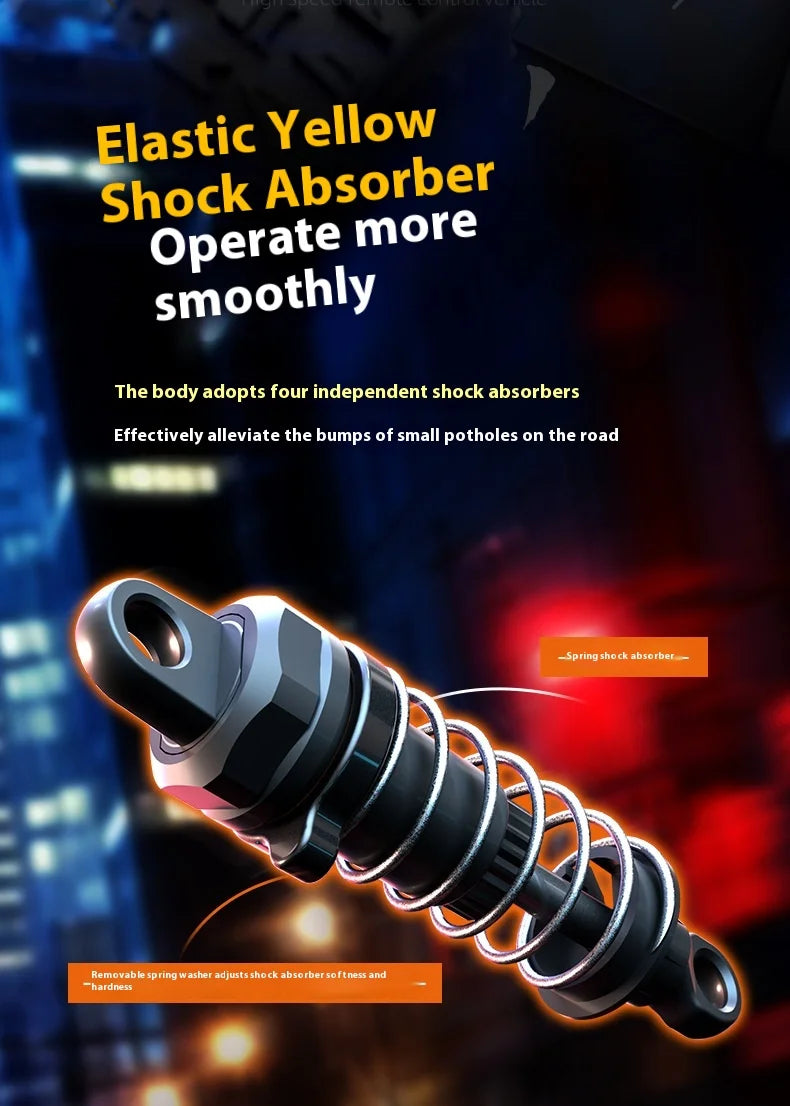

3. Four wheel drive: front and rear upright spring shock absorption, double wishbone independent suspension system;
4. Remote control system: 2.4G full proportional synchronous remote control system Fully proportional throttle/steering;
5. Electric tuning: 2.4G splash proof four-way 30A integrated electric tuning/receiver;
6. Drive shaft structure: front wheel cross ball joint drive shaft, rear wheel split dog bone drive shaft;
7. Servo parameters: Five wire 17G servo;
8. Battery parameters: 7.4V, 18650-1500mAh Li ion battery (T plug);
9. Ball bearings: The entire vehicle adopts 15 ball bearings;

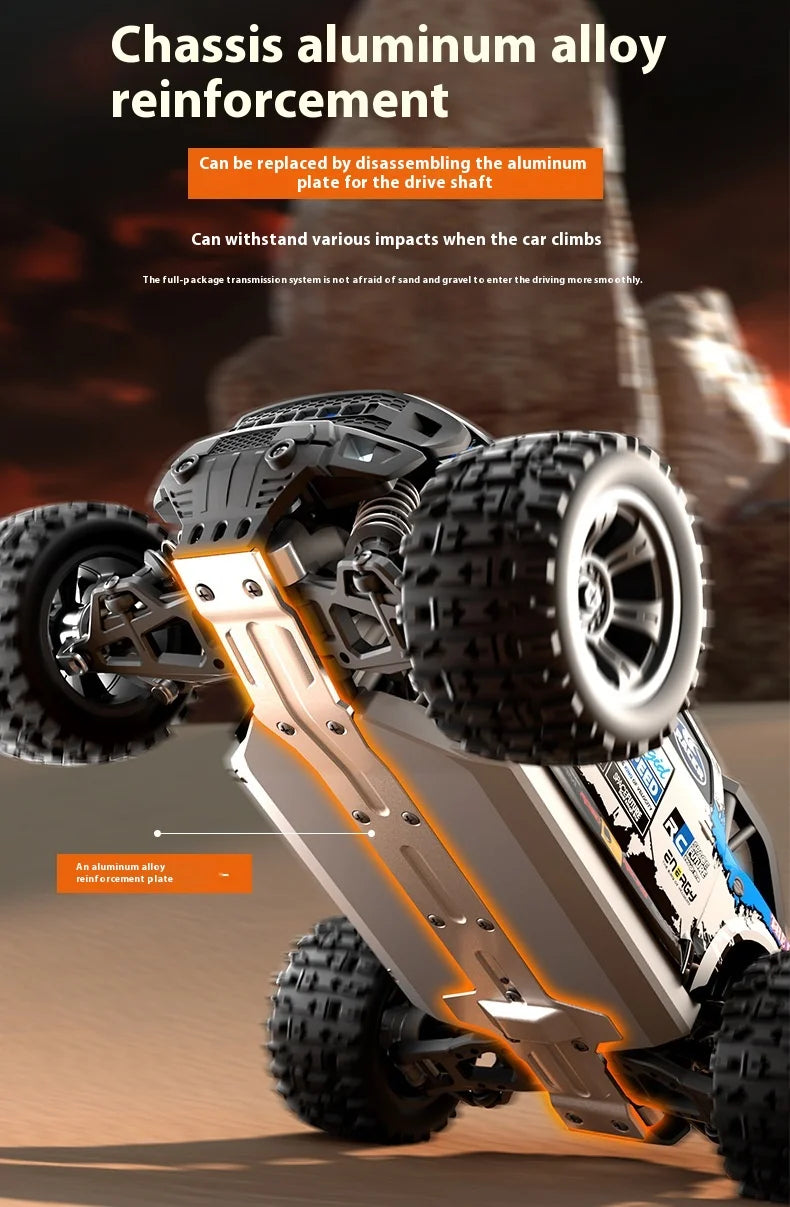

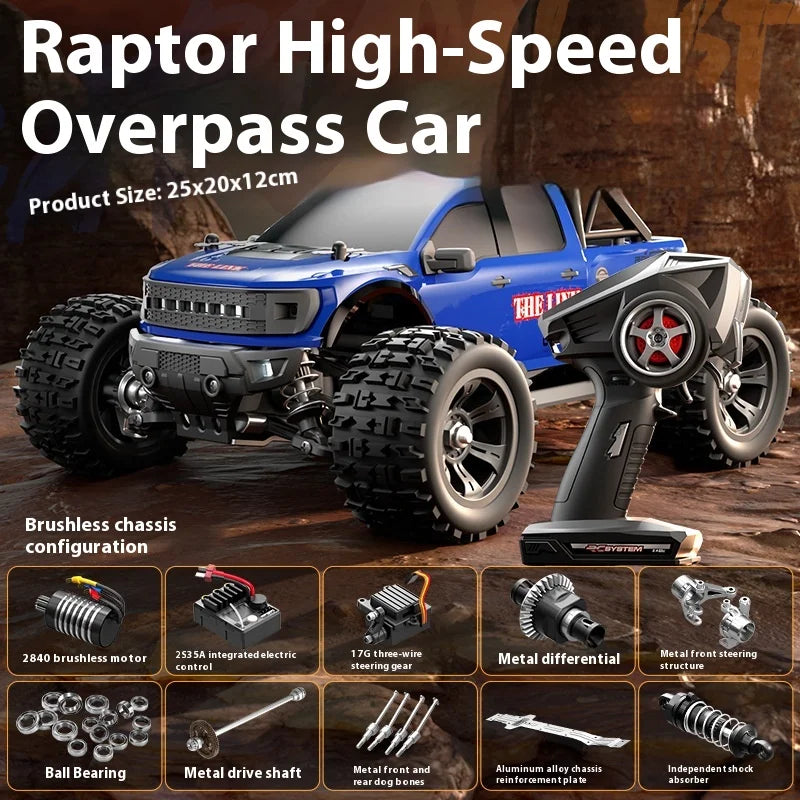

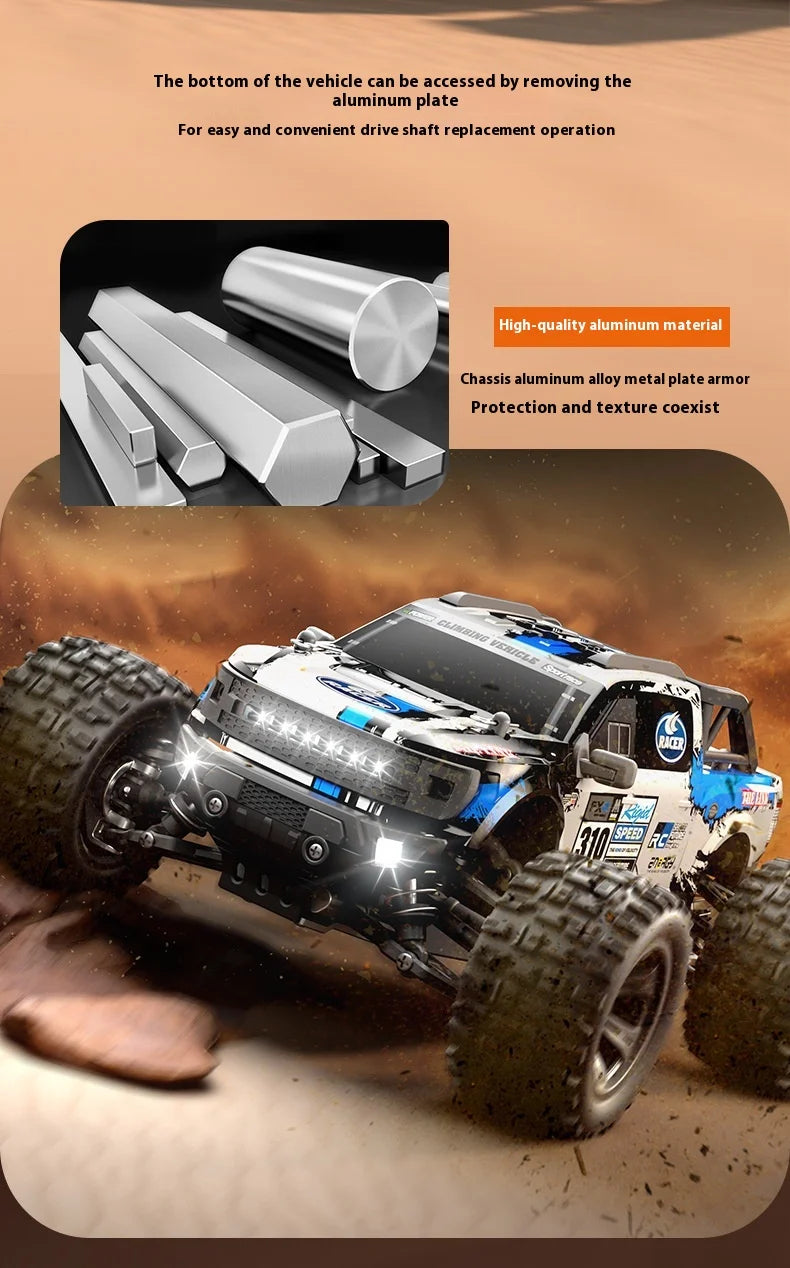

10. Metal components: metal underbody reinforcement plate, metal differential, metal gear, metal steering knuckle, metal front and rear arm code, metal middle drive shaft;
11. Car shell: The car shell adopts high toughness explosion-proof PVC car shell; The car shell comes with an anti loss silicone buckle;

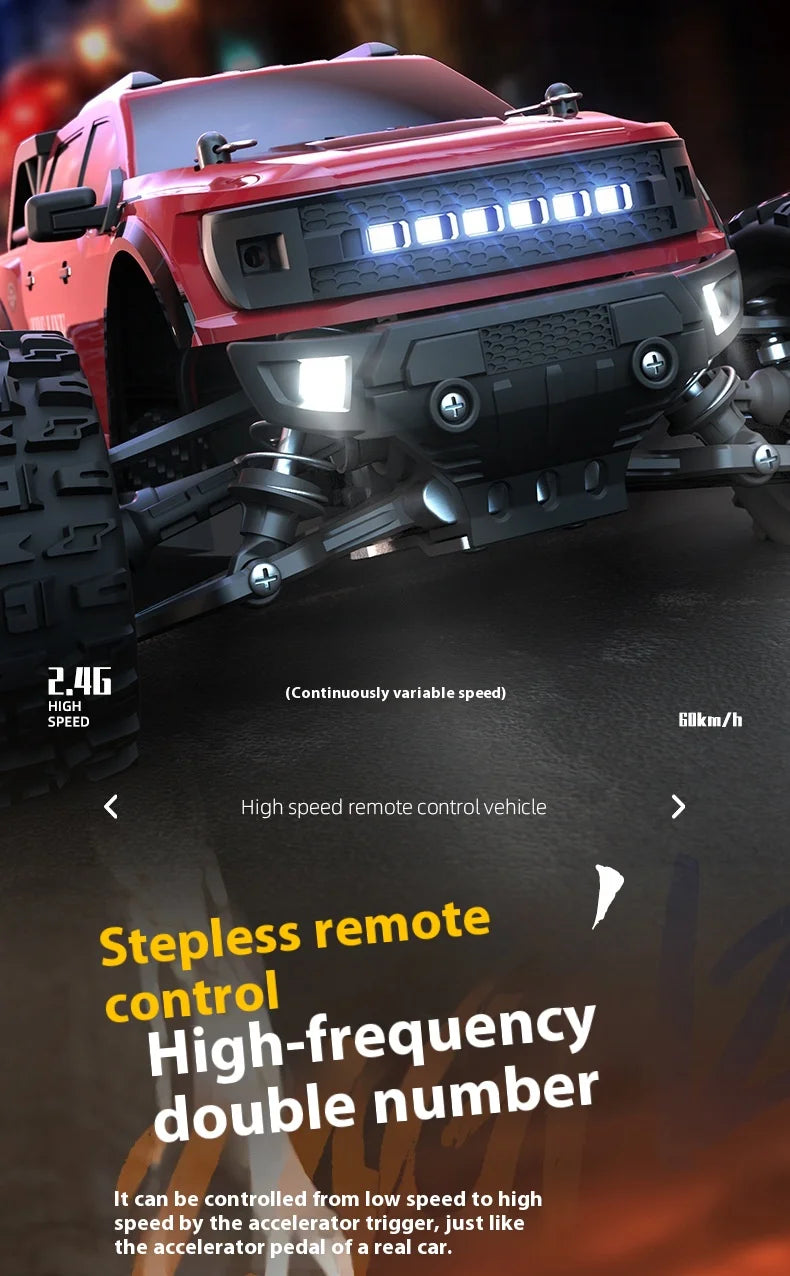

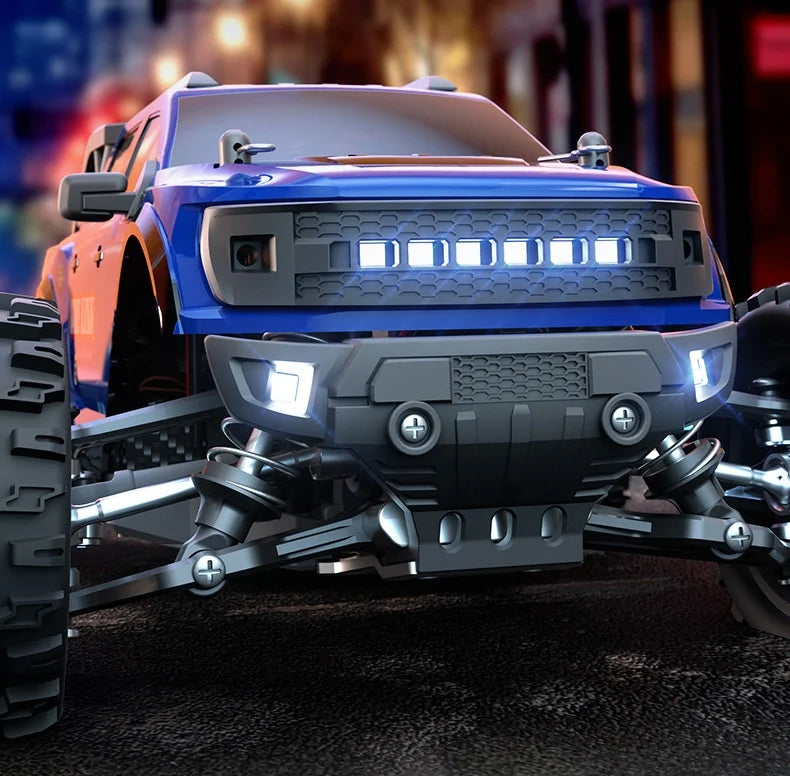

12. Lighting: equipped with LED headlights; (Three modes: constant light, slow flash, flash);
13. Other equipment: equipped with a lifting wheel;

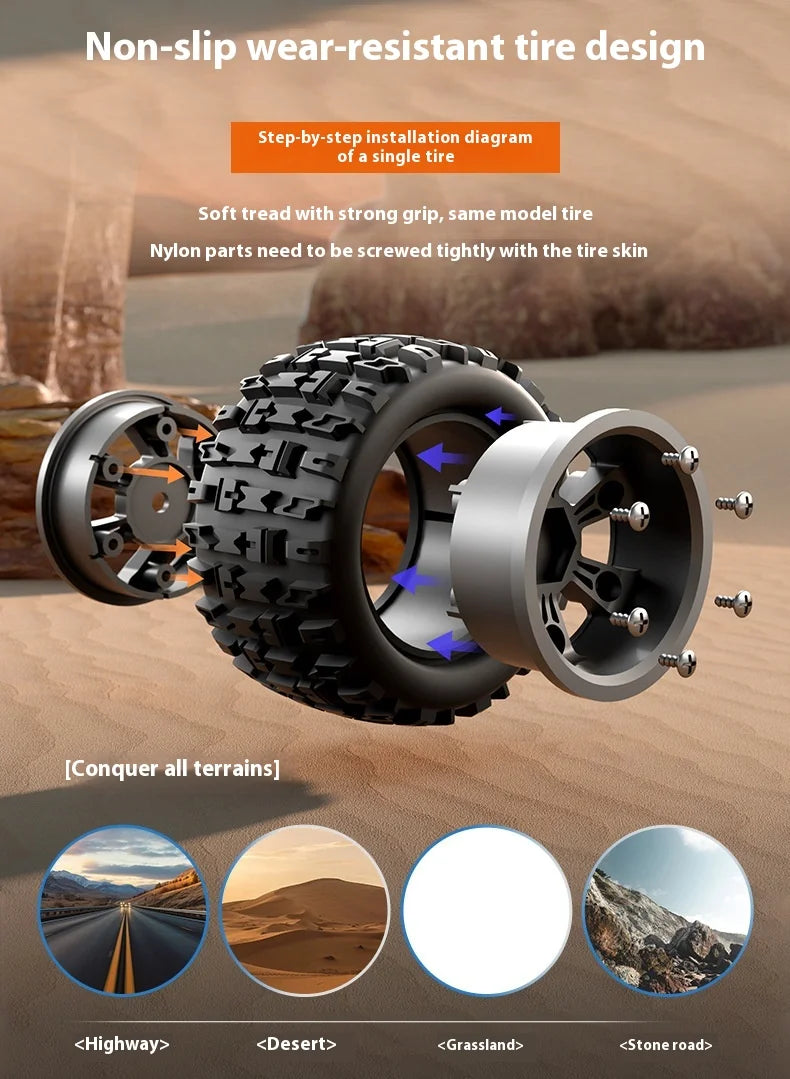

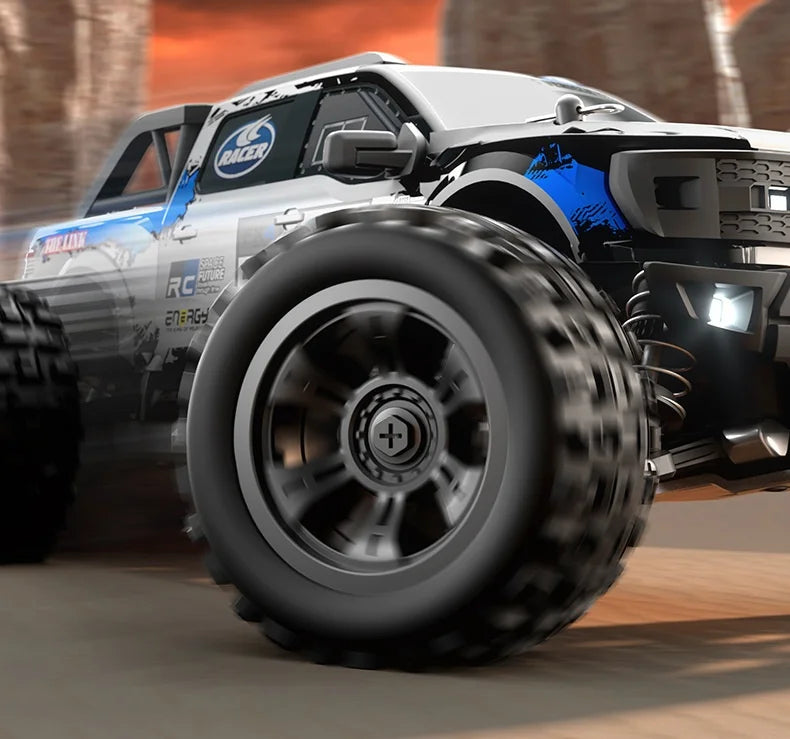

14. Other equipment: simulated large foot tires with strong grip;

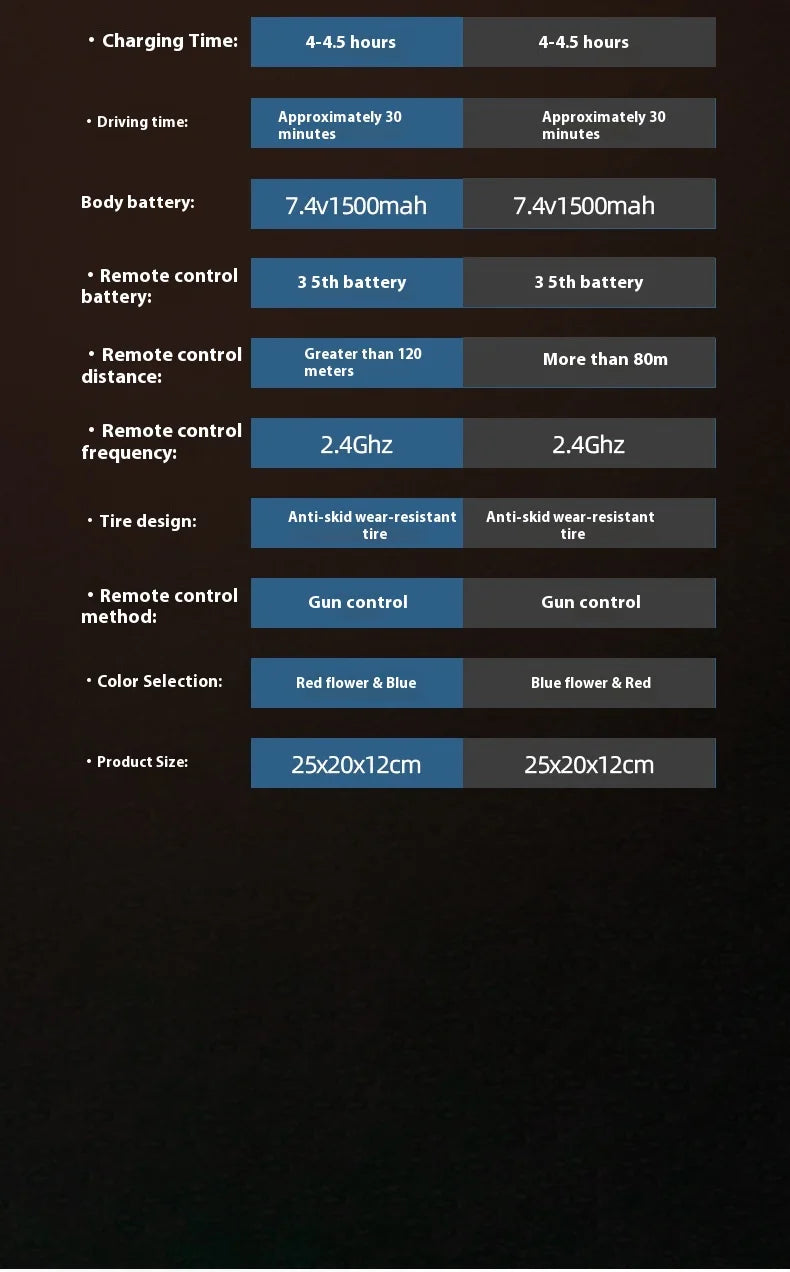

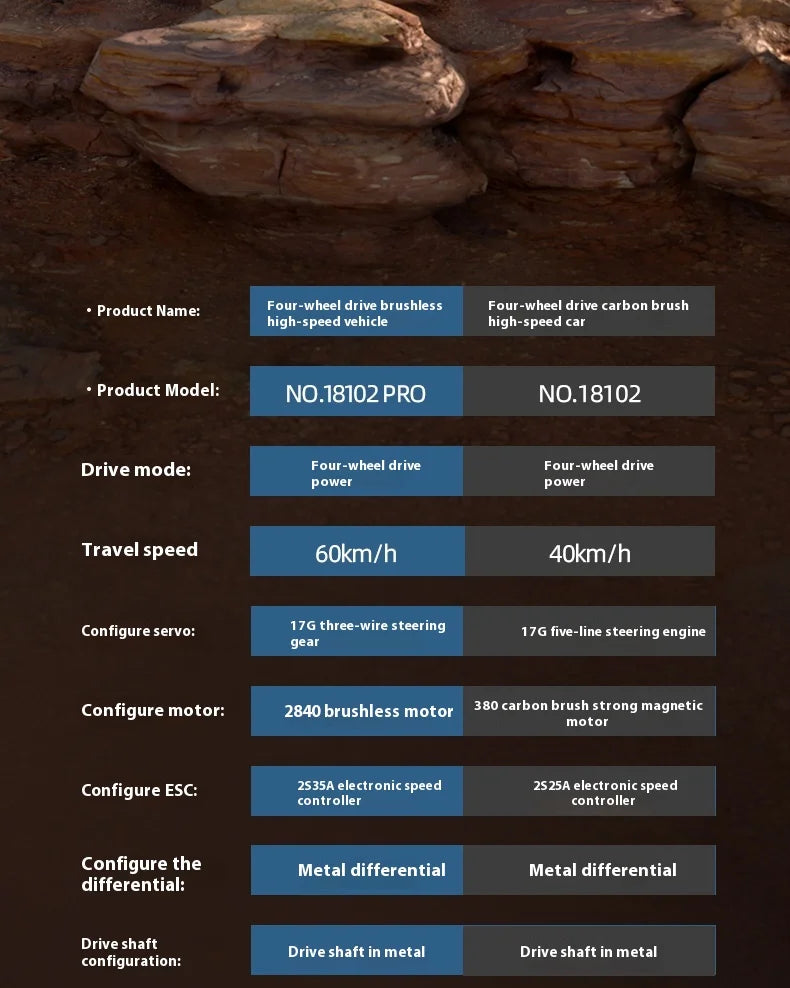

Product Code: 18102PRO
Product frequency: 2.4GHz (supports multiple cars competing on the same field)
Product Name: Fully Proportional Remote Control Four wheel Drive Bigfoot (Raptor) 1:18
Product color: floral red/blue
Product Materials: Hardware/Electronics/Plastic
Product speed (km/h): 50-60
Product battery: 7.4V 1500mAh 15C lithium-ion battery (T plug)
Remote control battery: 3 * "AA" (to be purchased separately)
Charging: USB cable charger
Remote control time (minutes): about 30 (continuous full speed running)
Charging time (minutes): 240-270 (USB balanced charging)
Remote control distance (meters): ≥ 100
Servo: Three wire 17G digital servo
Car light configuration: LED front white light, center white light
Differential structure: metal differential (planetary gear)

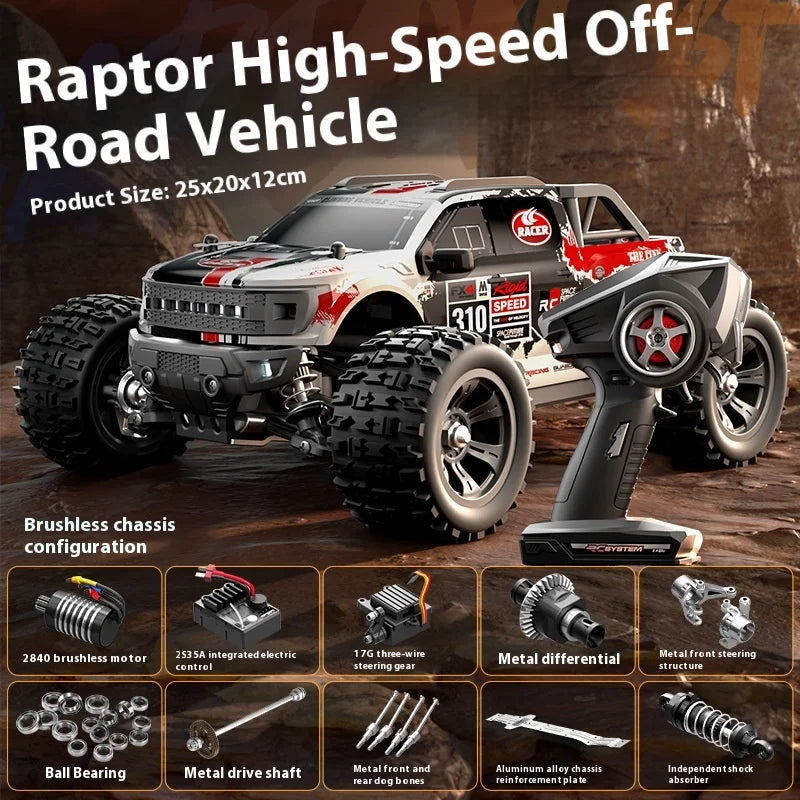

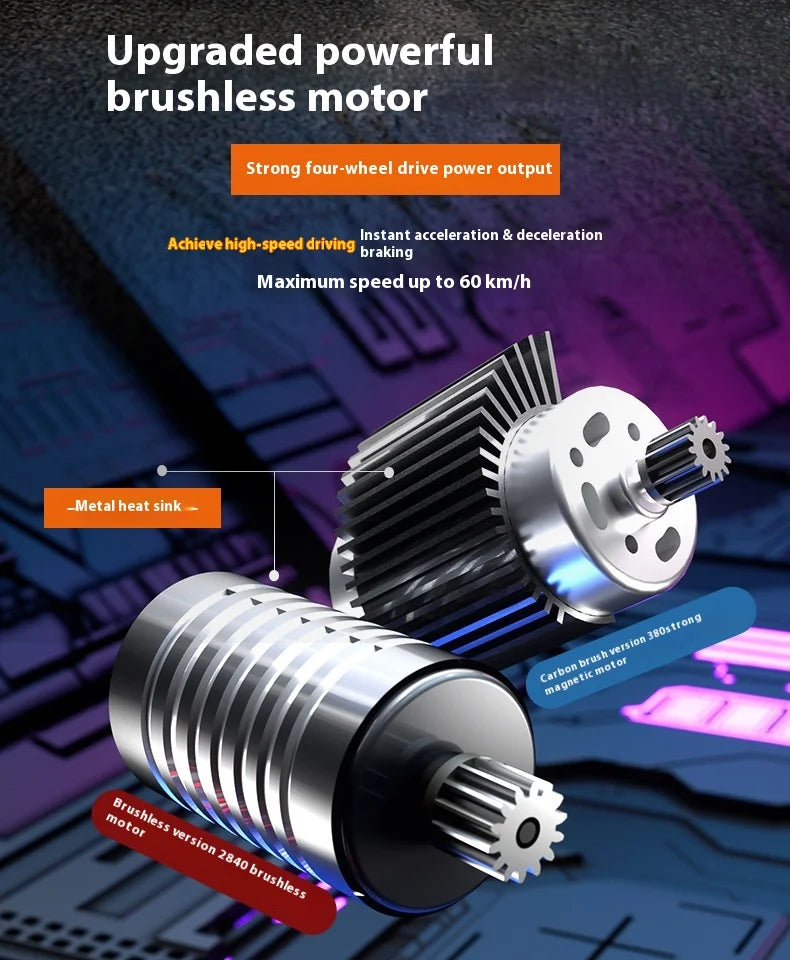

Motor: 2840 brushless motor (3900 KV value)
Electric tuning/reception: 2S 35A integrated control (splash proof)
Remote control category: Fully proportional synchronous control system (gun control)
Wheelbase parameters (mm): Wheelbase: 165mm Wheelbase: 155mm Wheel diameter: 67mm
Single weight (including battery) Kg: 0.95
Single packaging weight (including color box) Kg: 1.65
7.4V 1500mAH Weight (g): 93
Gross weight/net weight (kg): 14.4/12.9
Remote control specifications (cm): 12.6 * 8.2 * 18.5

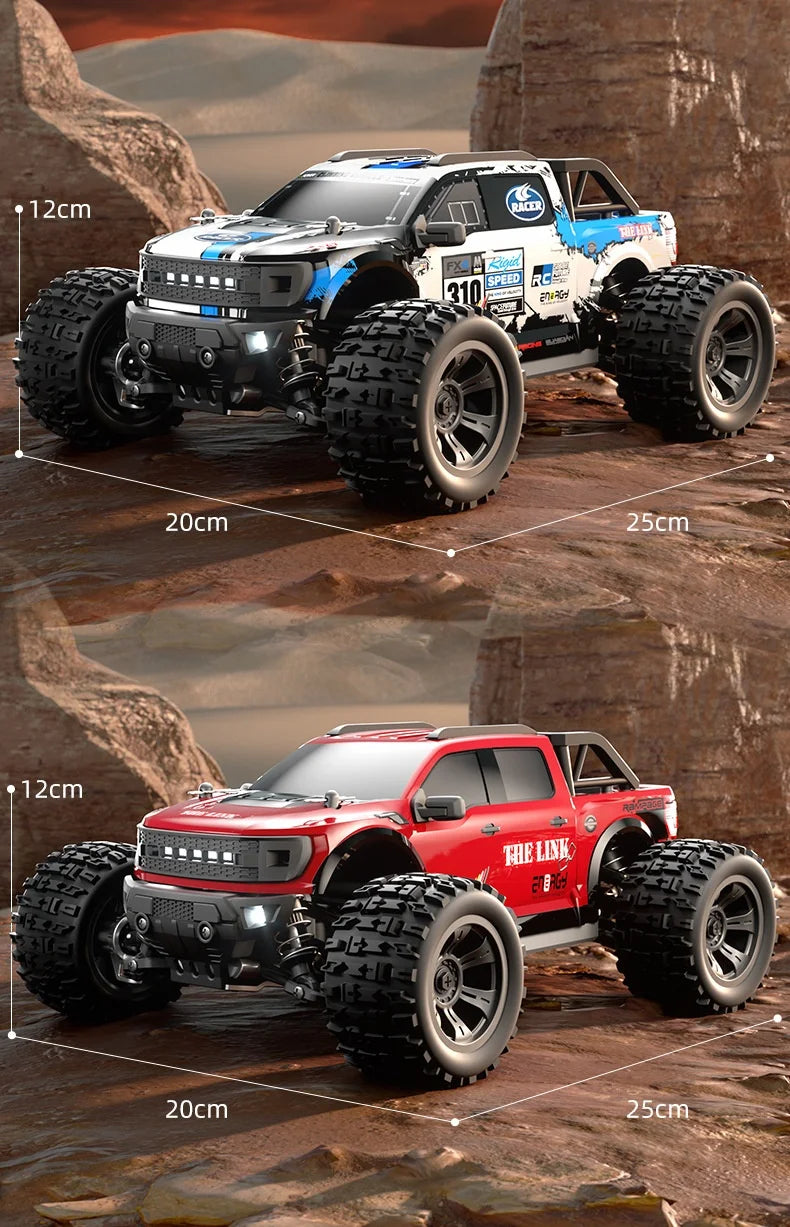

Product specifications (cm): 25 * 19 * 11
Color box size (cm): 26.3 * 16.5 * 22
Box size (cm): 54 * 34 * 47
Packing quantity (pcs): 8

Product configuration:
1) Whole vehicle; 2) Remote control; 3) Chinese and English manuals; 4) Lithium batteries; 5) USB charger; 6) Shock absorption adjustment buckle ring; 7) Metal pin; 8) Anti loss silicone buckle; 9) Cross screwdriver; 10) Hexagonal socket;

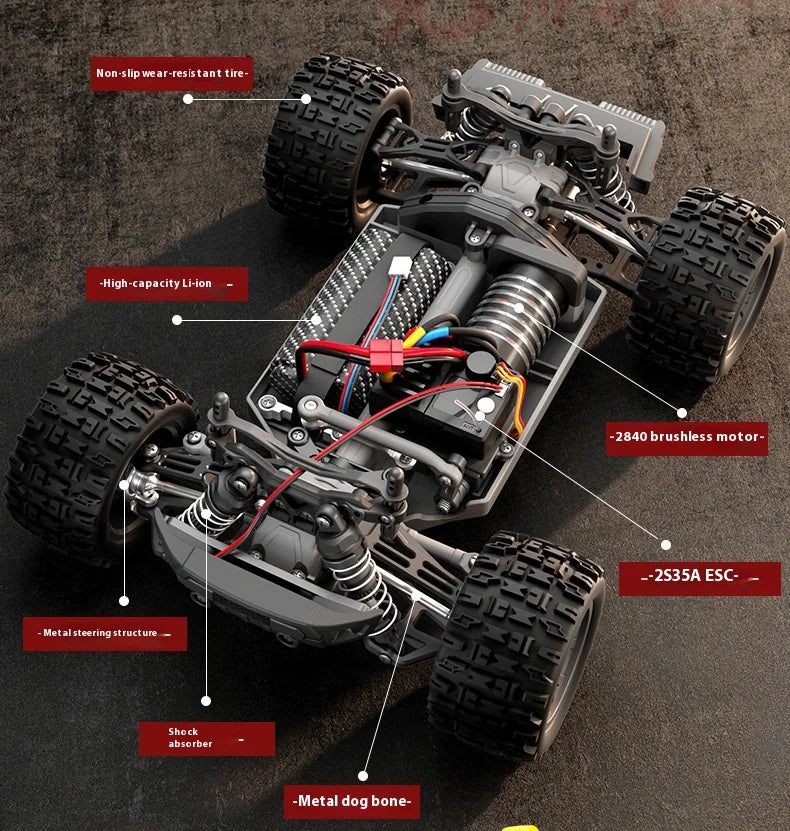

Product parameters:
1. Adopting a simulation structure design, it has a real car handling feel, achieving full proportional continuously variable transmission, high-speed driving, rapid acceleration, deceleration, braking, reverse, left turn, right turn;
2. Applicable venues: flat land, sandy land, muddy land, grassland.
3. Four wheel drive: front and rear upright spring shock absorption, double wishbone independent suspension system;
4. Remote control system: 2.4G full proportional synchronous remote control system Fully proportional throttle/steering;
5. Electric tuning: 2.4G splash proof four-way 35A integrated brushless electric tuning/receiver;
6. Drive shaft structure: front wheel cross ball joint drive shaft, rear wheel split dog bone drive shaft;
7. Servo parameters: Three wire 17G servo;
8. Battery parameters: 7.4V, 18650-1500mAh Li ion battery (T plug), discharge rate 15C;
9. Ball bearings: The entire vehicle adopts 15 ball bearings;

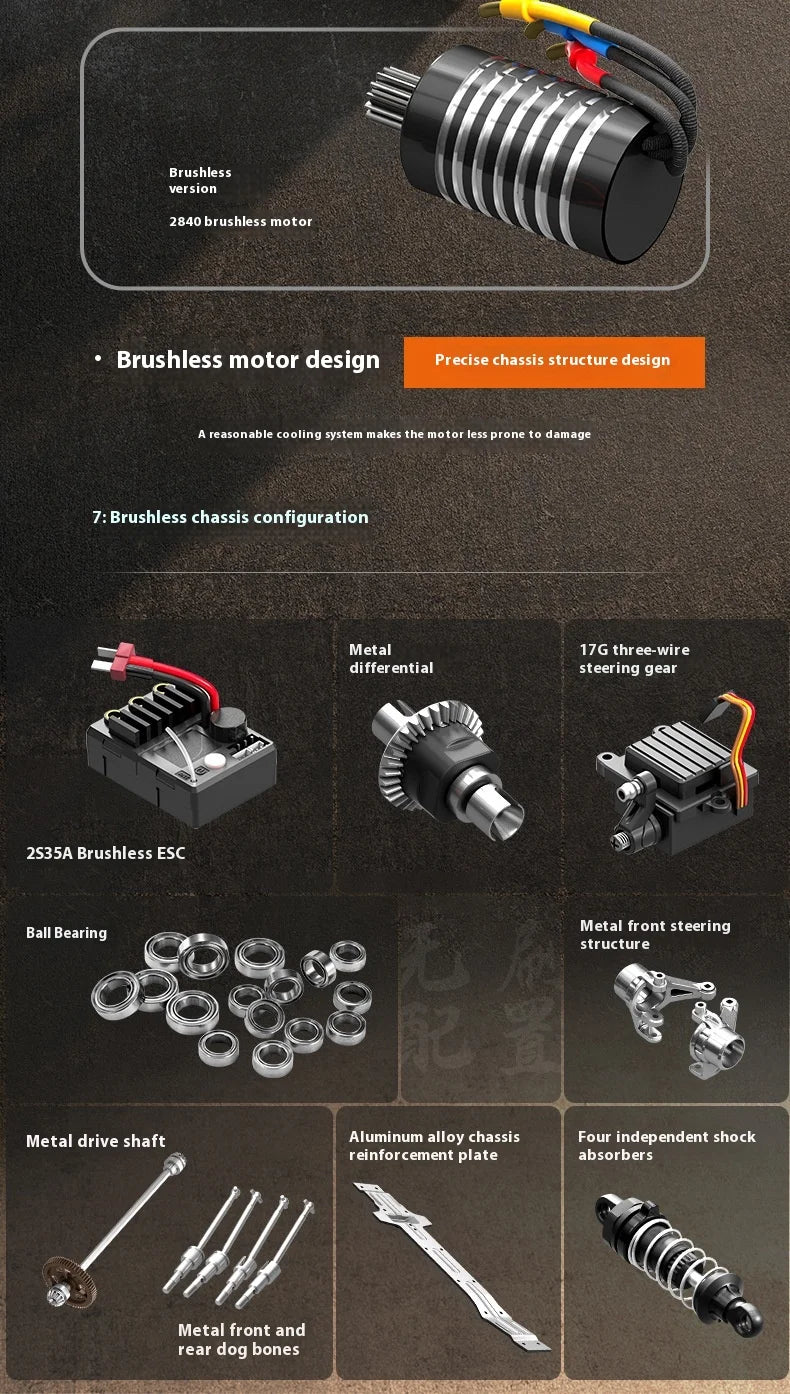

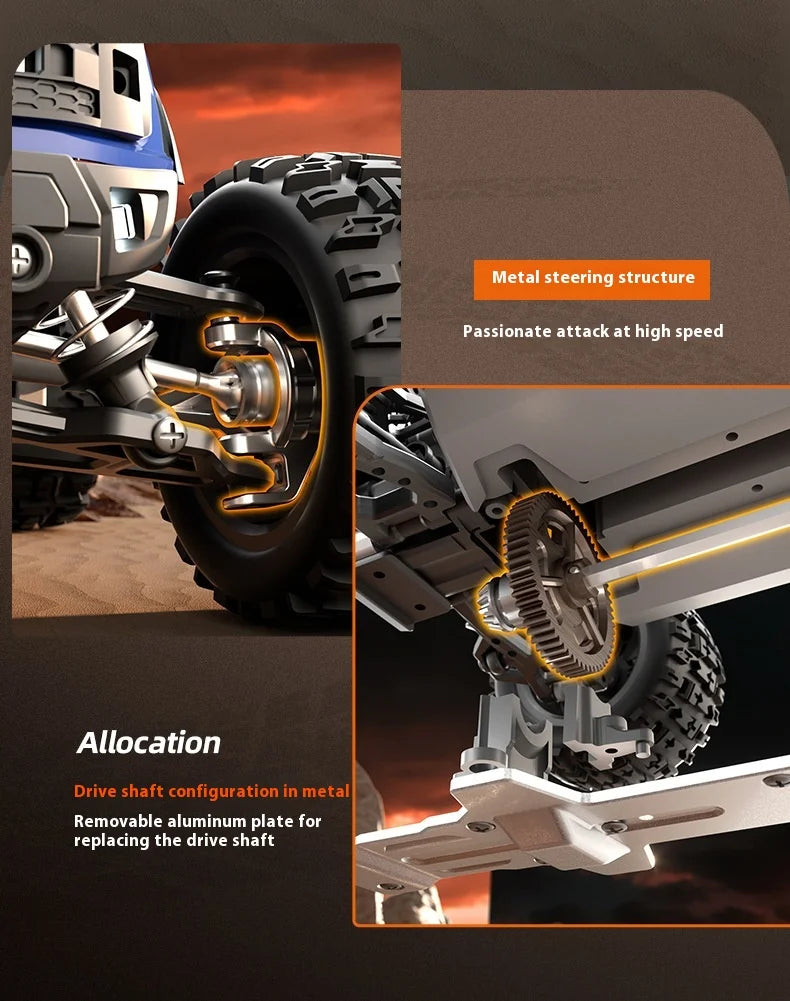

10. Metal components: metal underbody reinforcement plate, metal front CVD, metal rear dog bone and wheel cup, metal differential, powder gear, metal steering knuckle, metal front and rear arm code, metal middle transmission shaft;
11. Car shell: The car shell adopts high toughness explosion-proof PVC car shell; The car shell comes with an anti loss silicone buckle;
12. Lighting: equipped with LED headlights; (Three modes: constant light, slow flash, flash);
13. Other equipment: equipped with a lifting wheel;
14. Other equipment: simulated large foot tires with strong grip;
