SPECIFICATIONS

Brand Name: GreenYi

Camera Pixel: 1280*720

Car Fitment: Universal

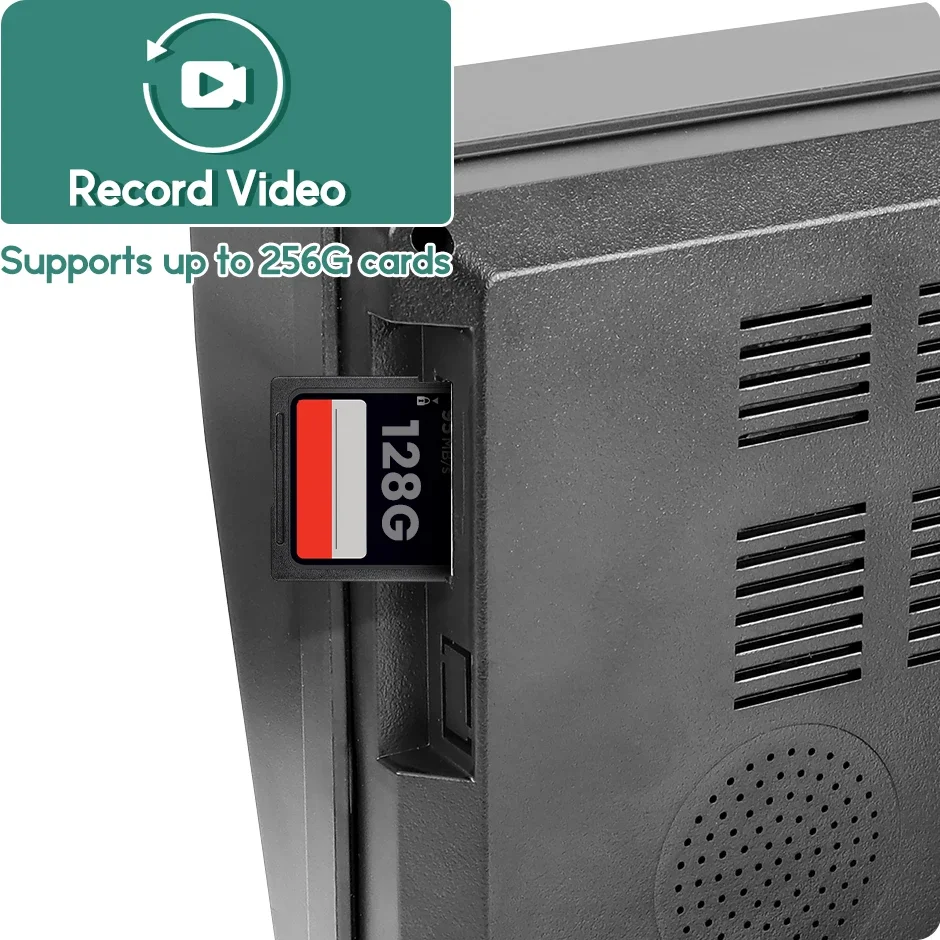

Connection: SD Card

Digital Image: No Color Cast

Function: wifi,DVR

IPS Screen: Support

IR night vision: Support

Loop recording: Support

Model Number: AW1000-W699

Monitor Contrast: 300:1

Monitor brightness: 500 cd

Place of Origin: Guangdong, China

Power: DC12V/24V

Resolution: 1280*720

Screen Type: IPS

Type: with camera

Warranty: 1 Year

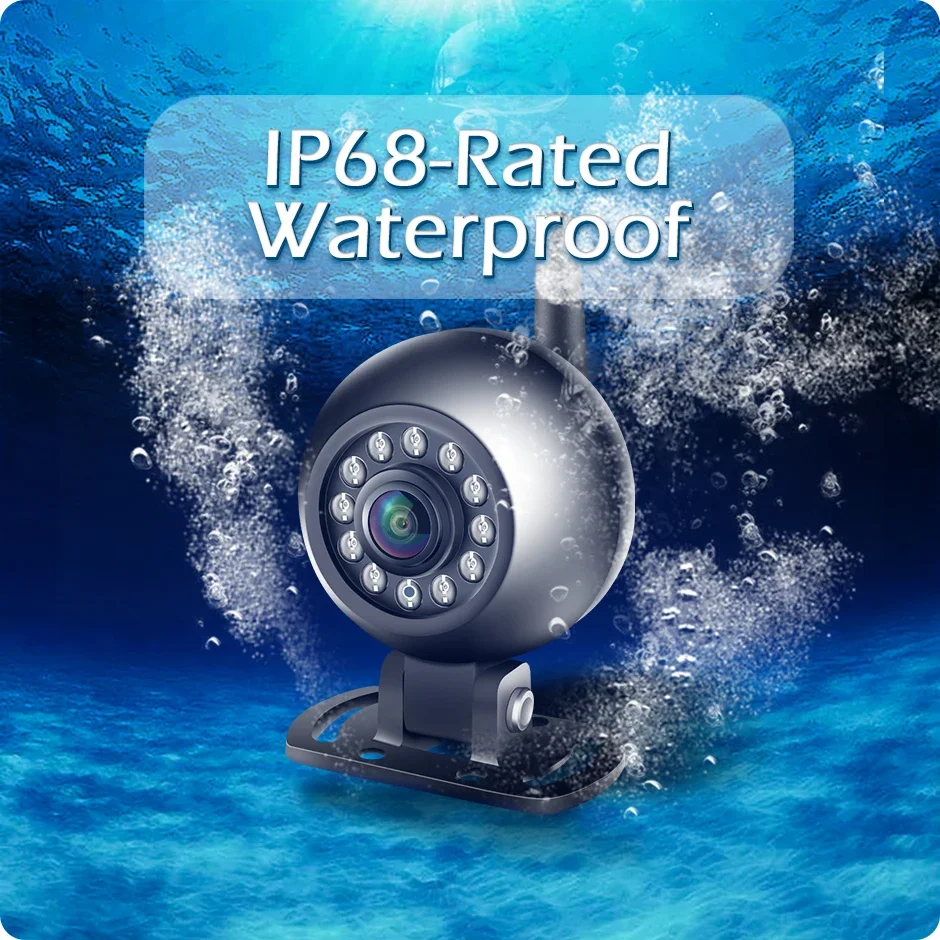

Waterproof camera: IP69K

Wireless signal distance: About 130m

Features:

• Top transmission distance: 130 meters
• Support for loop recording
• Super easy 1 step installation
• Very low wireless signal delay

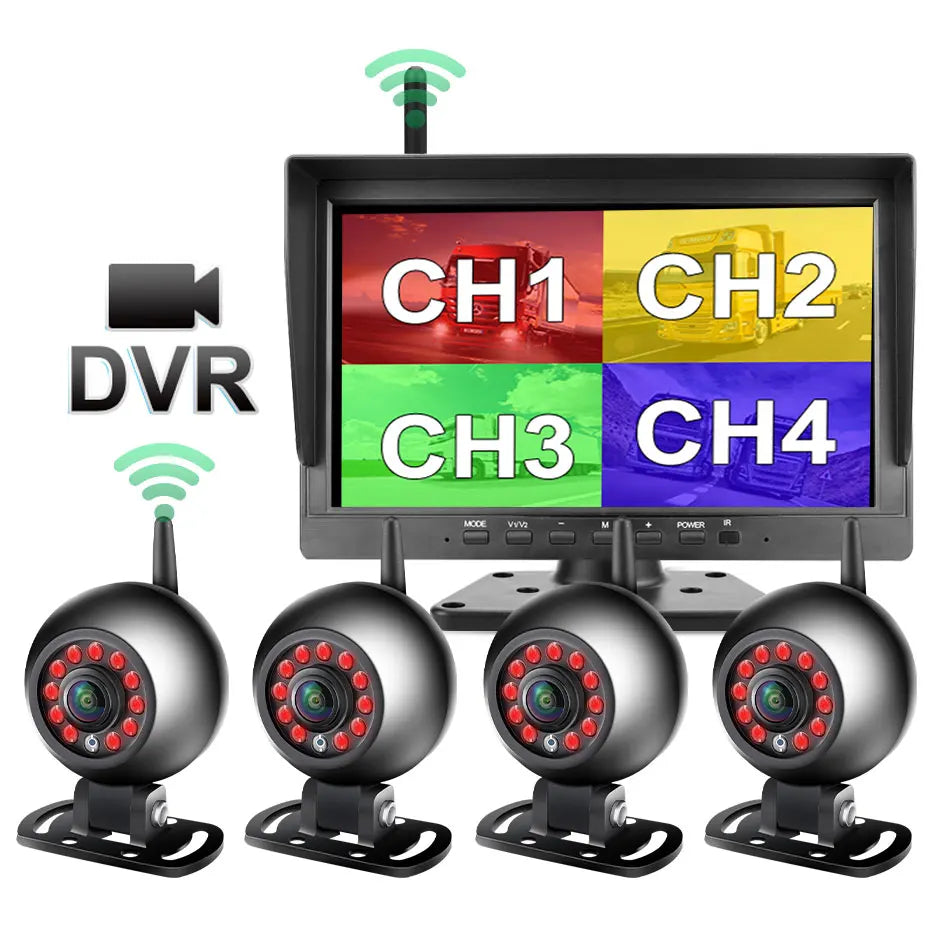

• Can display 2 ~ 4 screens at the same time
• AHD (Analog High Definition Technology)
AHD technology can realize reliable transmission of ultra-long-distance (500 m) high-definition video signals on analog transmission lines; it adopts advanced Y/C signal separation and analog filtering technology, which can effectively reduce color noise in high frequency region and image reduction. better. Compared with the traditional CVI signal, AHD's surveillance image quality has a qualitative leap and improvement, and the resolution can be equal to the HD 1080P level.AHD-M(TVL)
Features:
• Clearer and advanced bright color separation, signal filtering, 3D noise reduction technology, higher image clarity and better image reproduction.
• transmission far from the coaxial transmission of ordinary 75-3 line up to 500 meters
• Highly integrated AHD front-end chip, high-definition quality products.
• Rearview Night Vision IR Waterproof Backup Reverse Camera with Built-in Wireless Transmitter --Auto Water-Proof Camera Lens, with 18 individual Infrared (IR) LED. Effective range: 15m. It help your view still clearly at night or in bad weather.

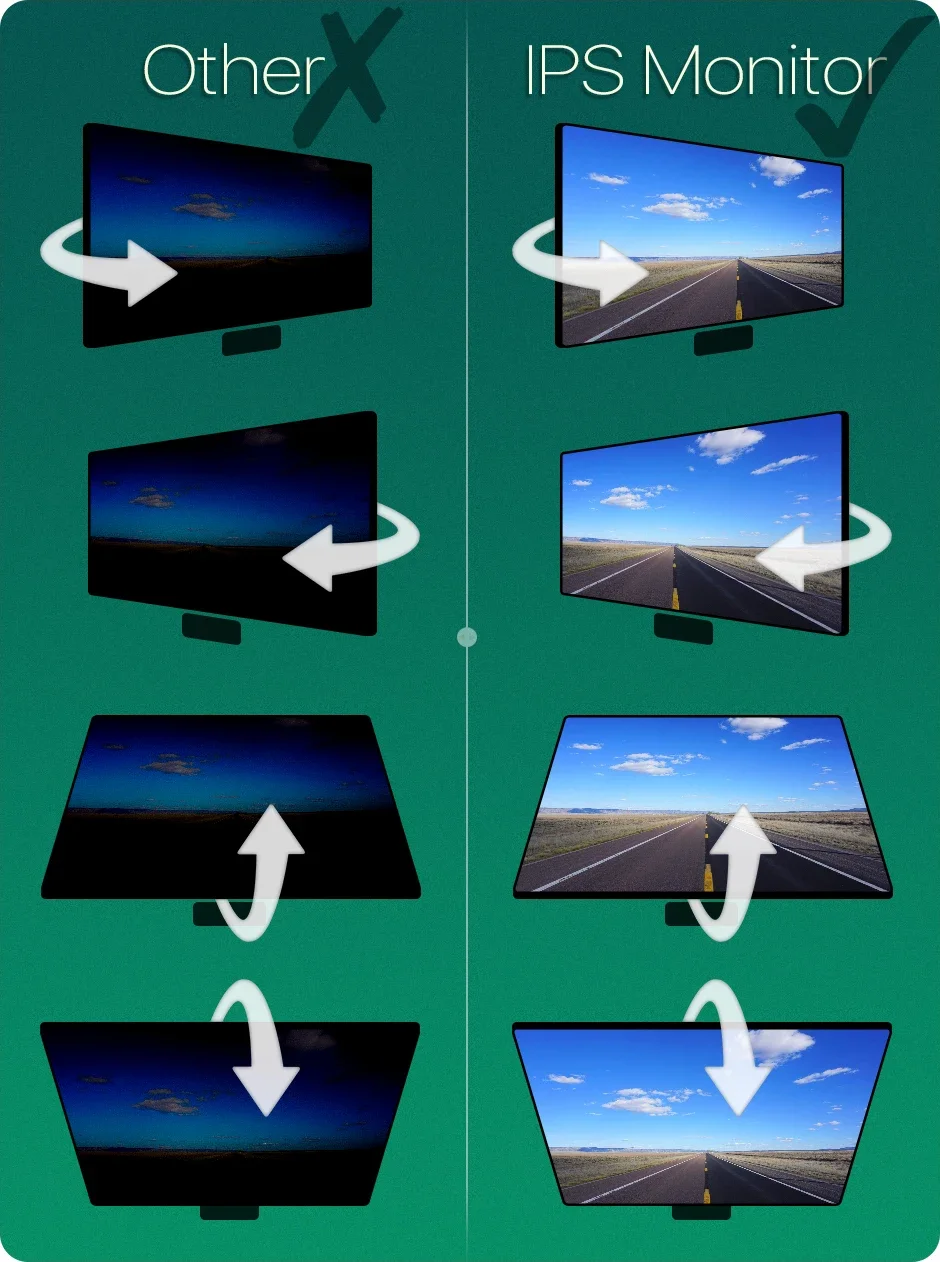

IPS Monitor → Excellent 178° Full-view display technology

• 178° Wider viewing angles
• Faster response times
• Better color/contrast than many VA and TN panels
• Outstanding color accuracy and screen consistency

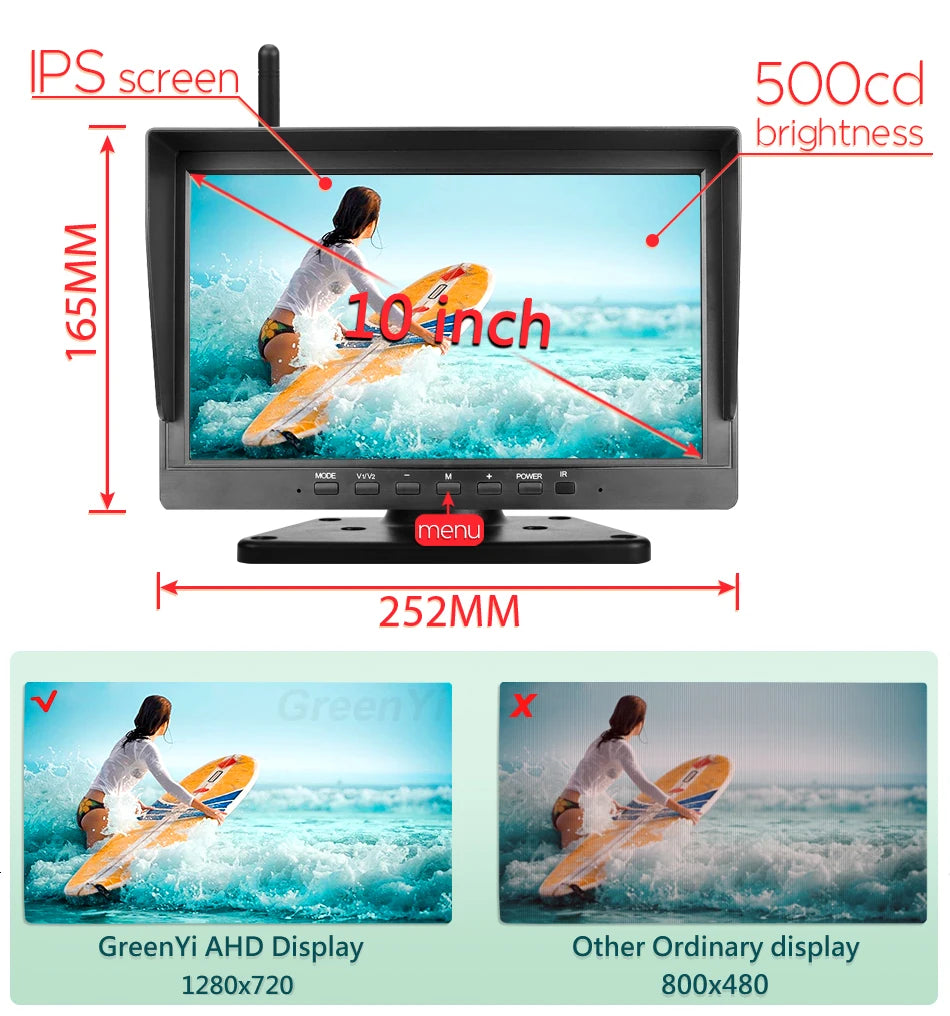

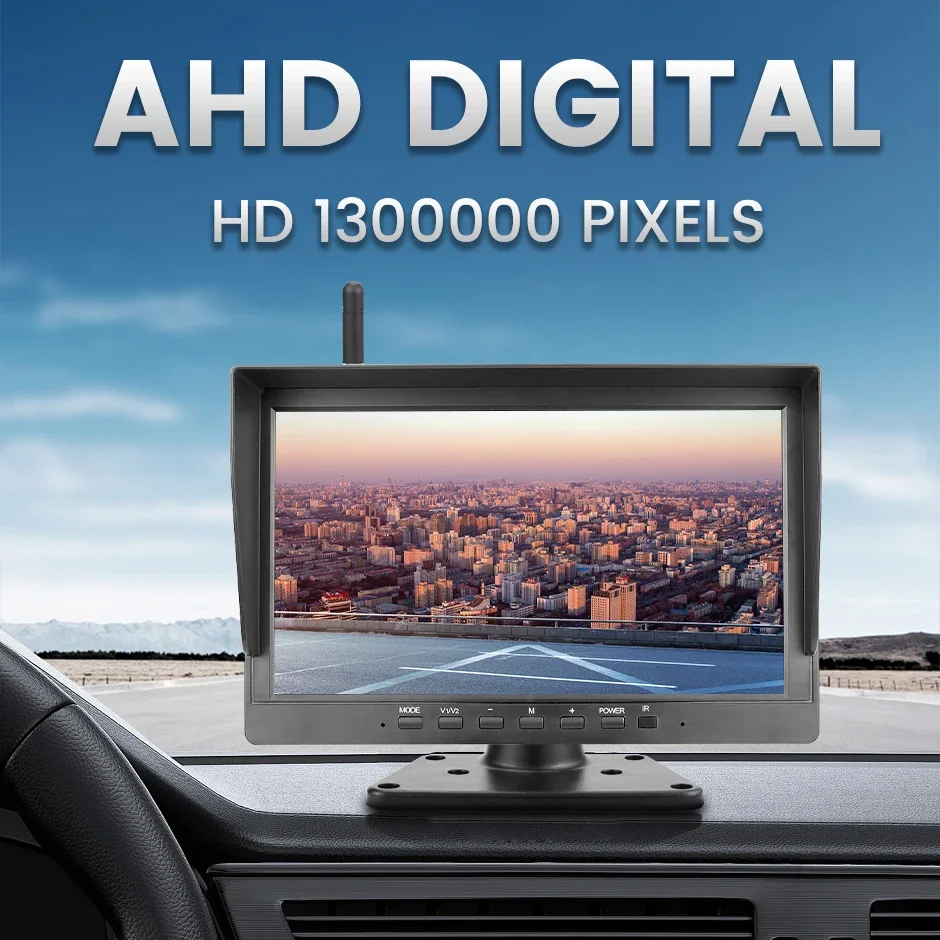

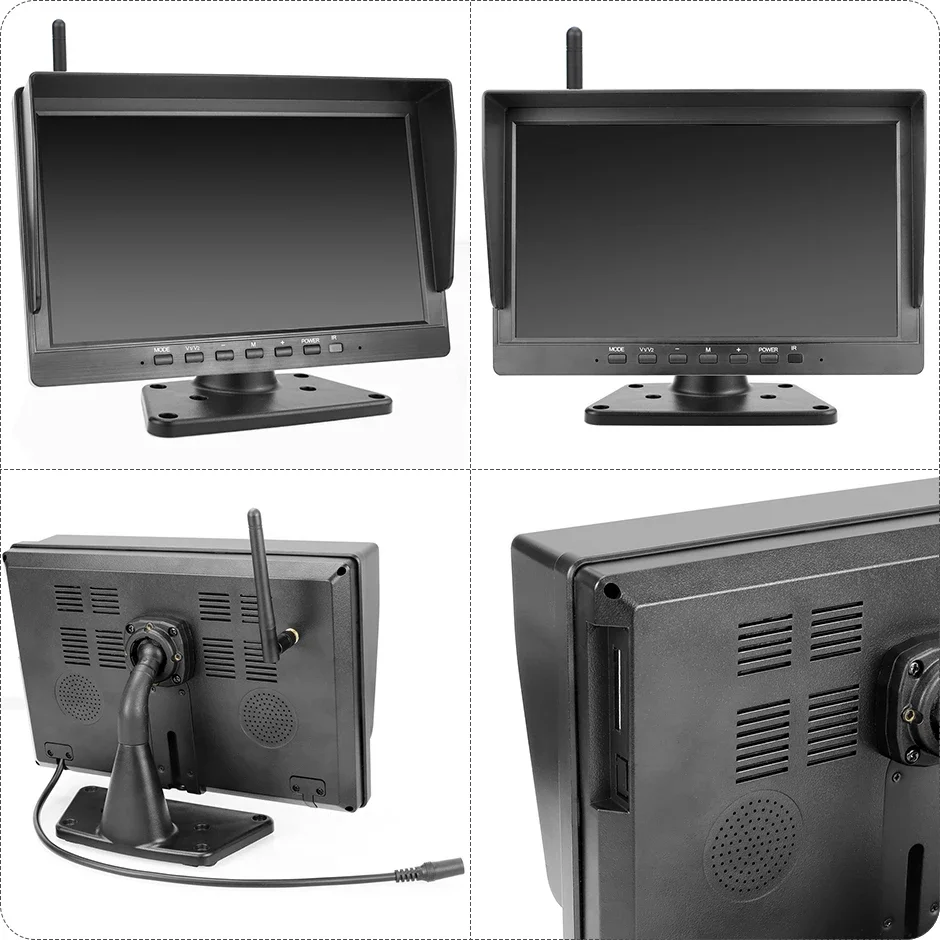

AHD Wireless Car DVR Monitor:

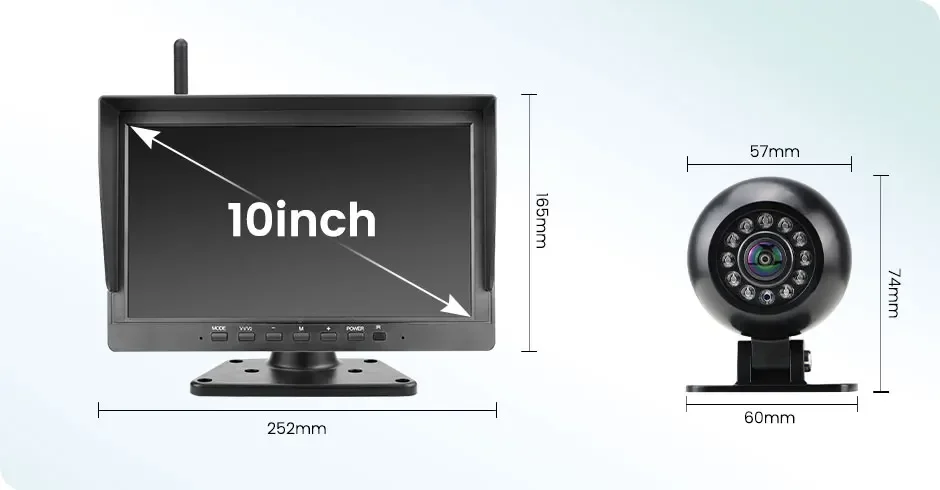

Screen size: 10-inch screen
IPS screen: Support
Format: 16:9
Screen brightness: 500CD / M2
Effective pixels of the screen: 1024*600
Record video pixels: 1280*720
Loop recording: Support

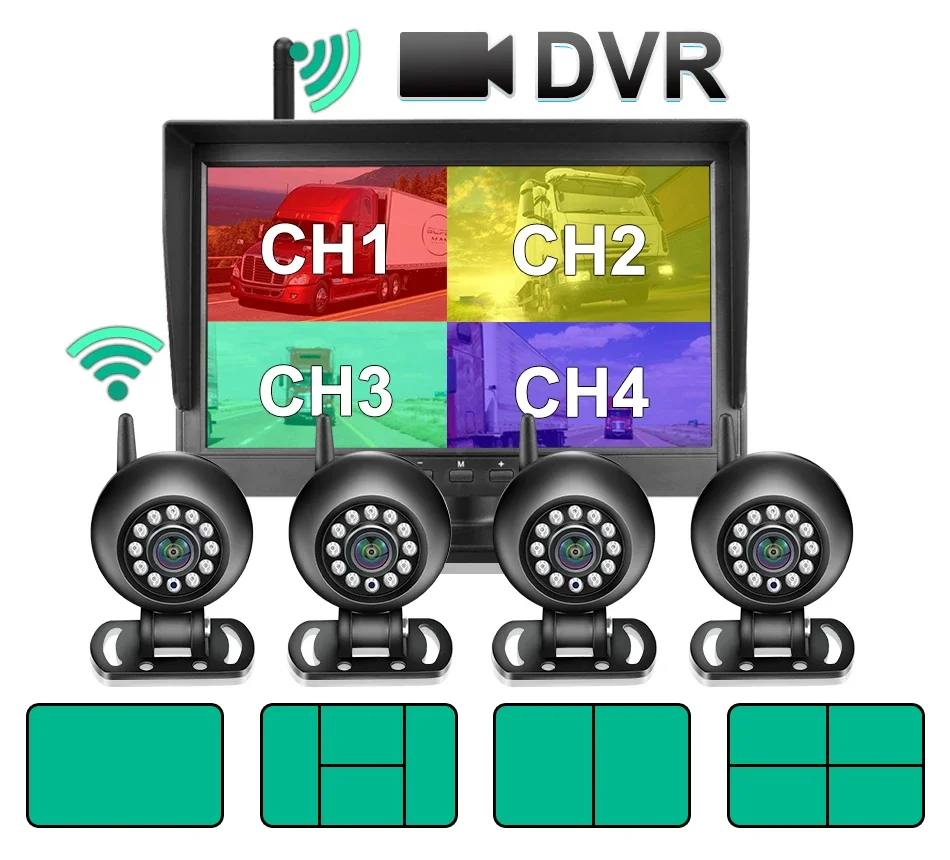

Split screen: Support
Real-time playback: Support
Mirror function: Support for 4 types of rotated image display
Night vision image: automatic gain control, automatic white balance.
Power supply voltage: 12V-30V
Menu language: Support English, Russian, Italian, Deutsch,French,Espanol,Japan

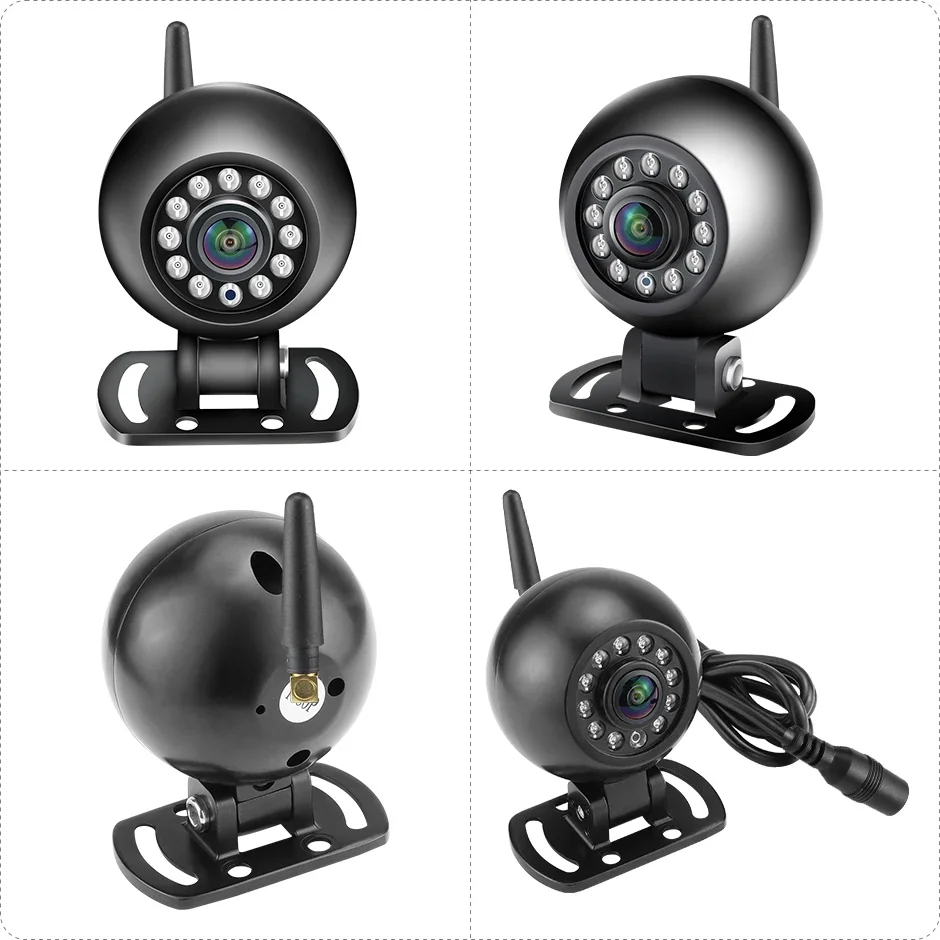

AHD Wireless Car Camera:
Effective pixels: 1280×720
PImage horizontal resolution: 130W pixels
Video output: AHD VIDEO (720P)

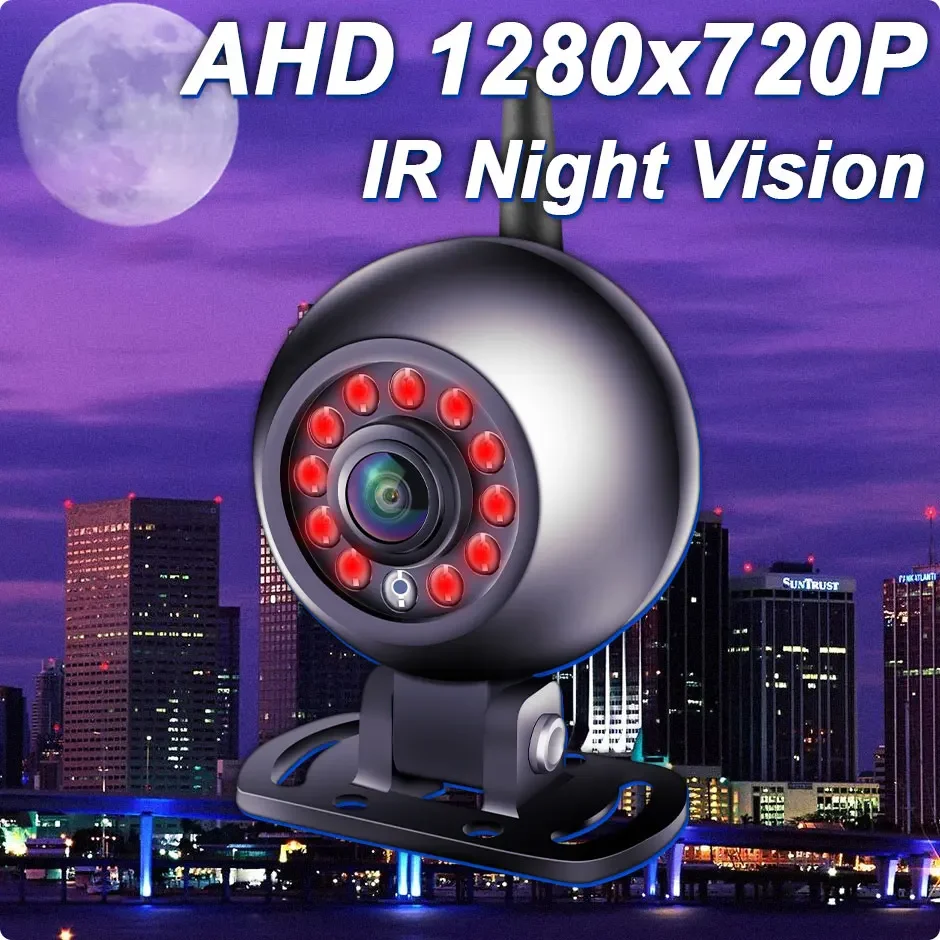

Night Vision: With 18 individual Infrared (IR) LED. Effective range: 20m
Material: zinc alloy
Lens: 14/16MM
Low illumination: 0.01Lux
Signal to noise ratio: ≥69dB
Working power supply: DC12V-30V
Working temperature: -20 ° C ~ +50 ° C

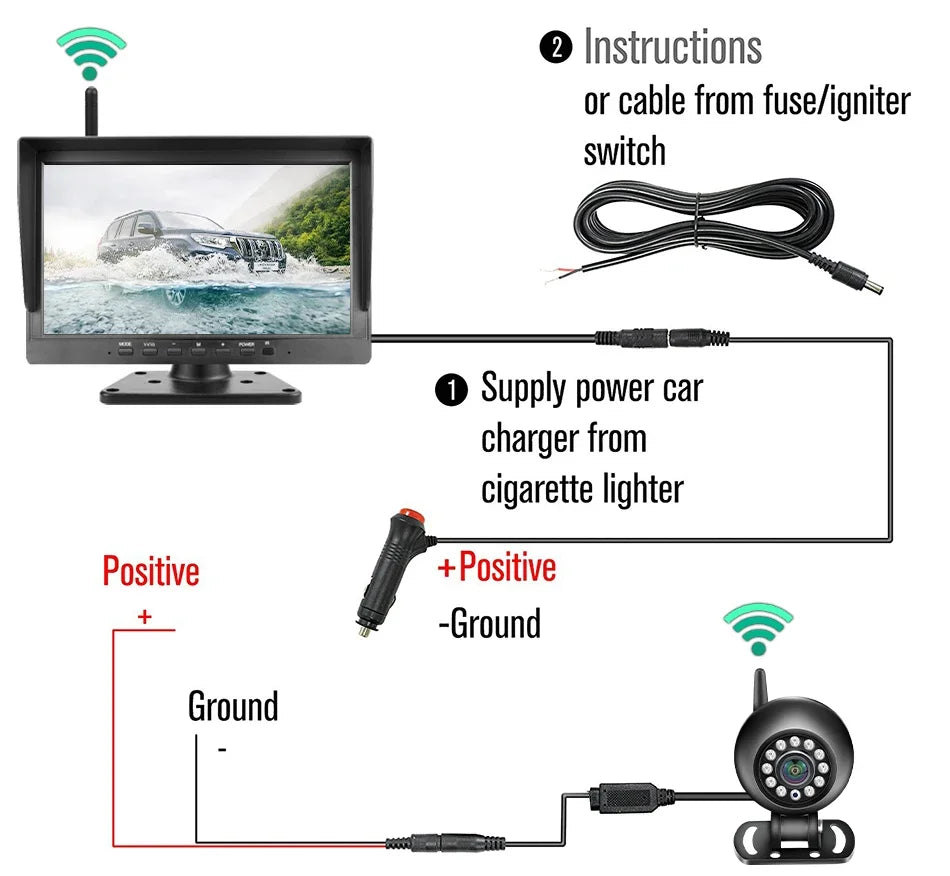

Installation Guide:
1. Click "Pairing" by setting.
2. Then connect the camera to the power supply.
Super easy 1 step installation, up to 100 meters wireless transmission distance, suitable for any vehicle.
