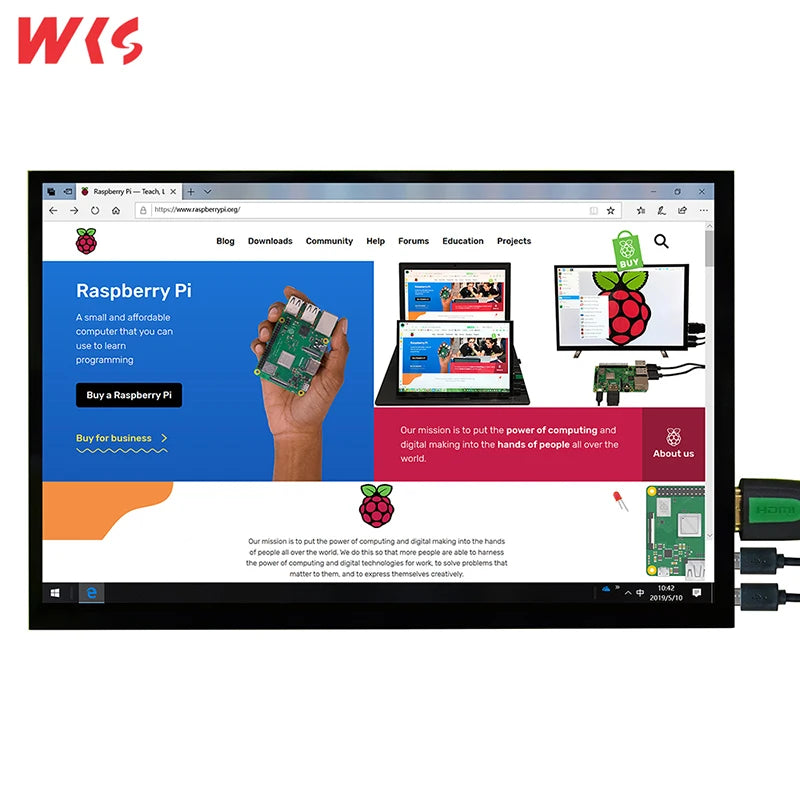

SPECIFICATIONS

Application: Industrial/Medical/Business

Brand Name: WKS

Brightness: 300 cd/㎡

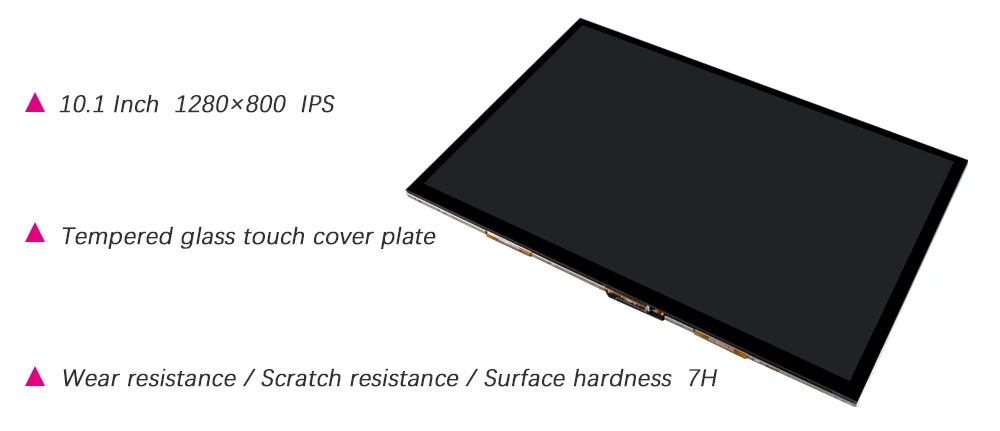

Display Size: 10.1

Outline Dimension(WxHxT): 229.46x149.10x4.90mm

Payment: Paypal\TT\Western Union\Trade Assurance

Pixel Pitch: 0.1695*0.1695mm

Place of Origin: Guangdong, China

Power: 5v

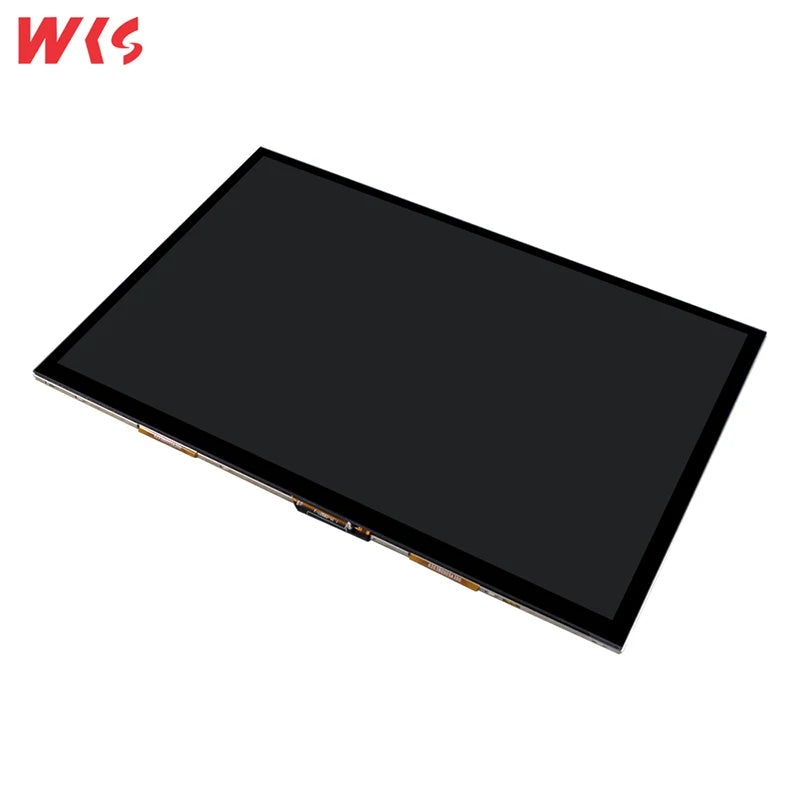

Product Name: Touch display screen

Resolution: 1280RGBX800

Supplier Type: China factory directly supply

Touch: Multi capacitive Touch Screen

Type: IPS

Viewable screen size: 216.96*135.60mm

Product Paramenters

Item of general information	Contents			Unit
LCD Display Size (Diagonal)	10.1			inch
Module Structure	LCD Display+CTP Touch +PCB			-
LCD Display Type	TFT/TRANSMISSIVE			-
LCD Display Mode	Normally Black			-
Recommended Viewing Direction	ALL  VIEW			-
Module size (W×H×T)	229.46x149.10x4.90			mm
Active area (W×H)	216.96x135.60			mm
Number of pixels (Resolution)	128RGBX800			pixel
Pixel pitch (W×H)	0.1695X0.1695			mm
Color Pixel Arrangement	RGB Stripe			-
System Support	Win7/Win8/Win10(Plug and play)			-
		Android/Linux(need to be configured)			-
Module Interface Type	LCD Display	HDMI interface	-
		CTP	USB interface
Brightness	350			cd/㎡
Color Numbers	16.7M			-
Backlight Type	White LED			-
Operating Temperature	-20 to +70			℃
NTSN Ratio	50%			-

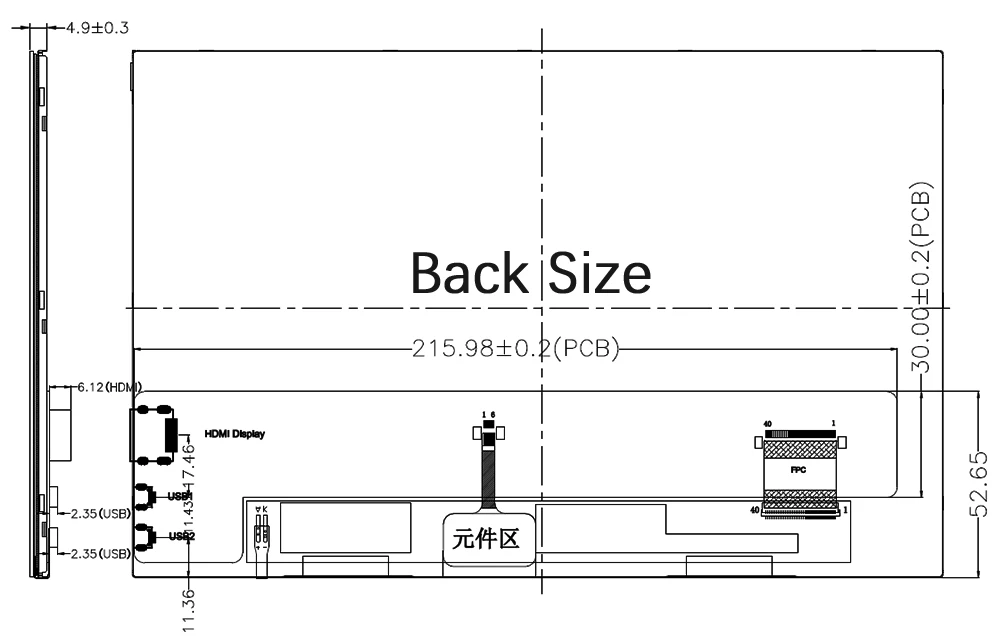

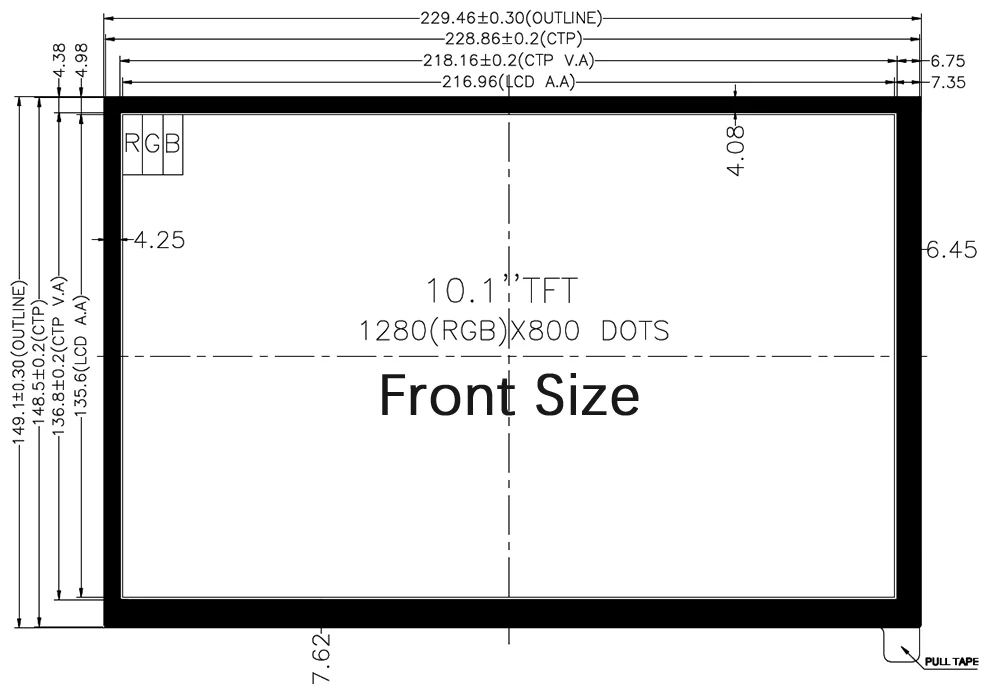

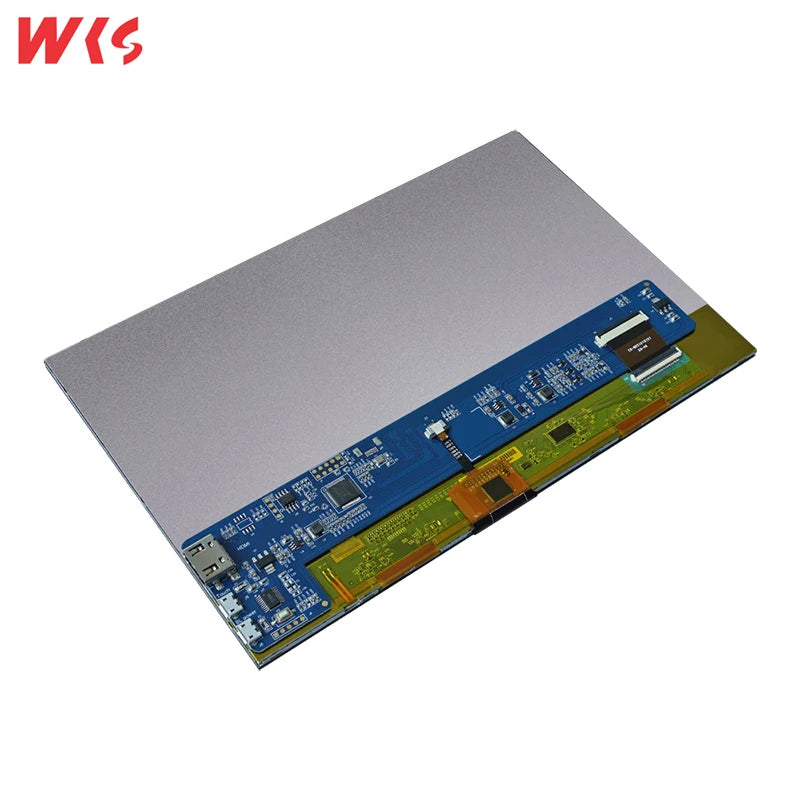

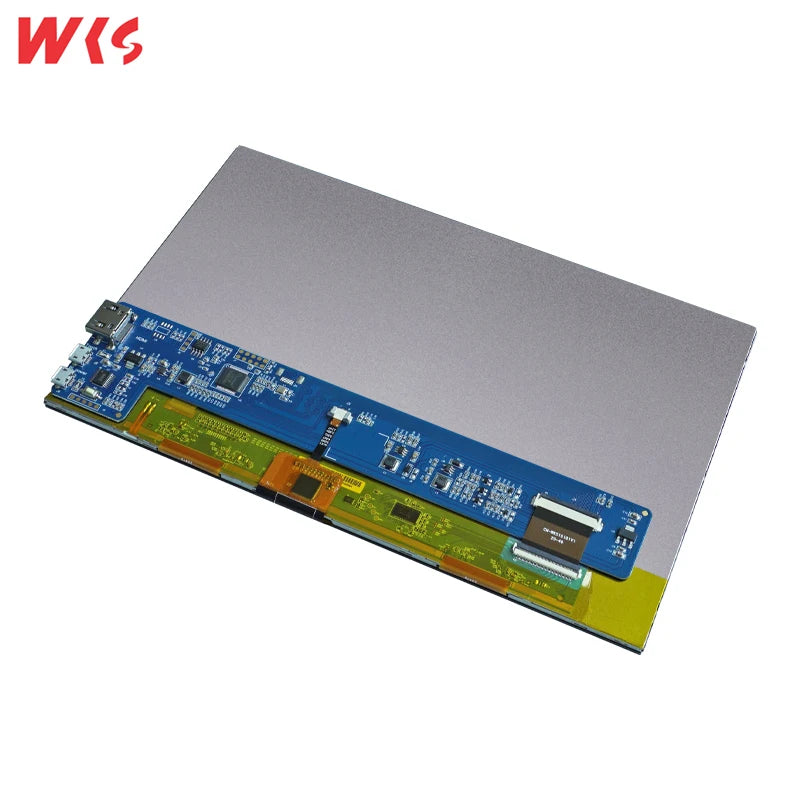

Product Structure Diagram

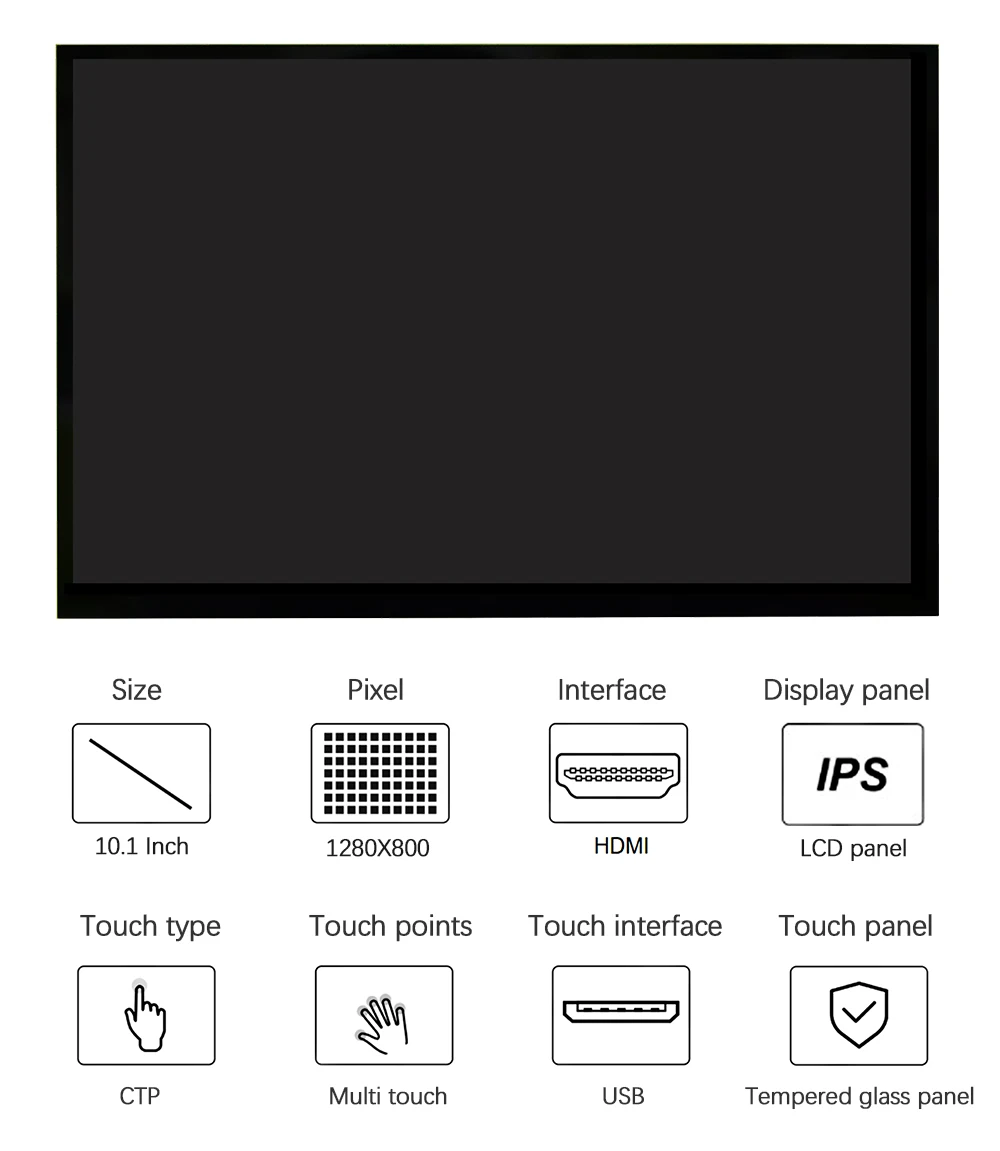

Product details

Application Note:

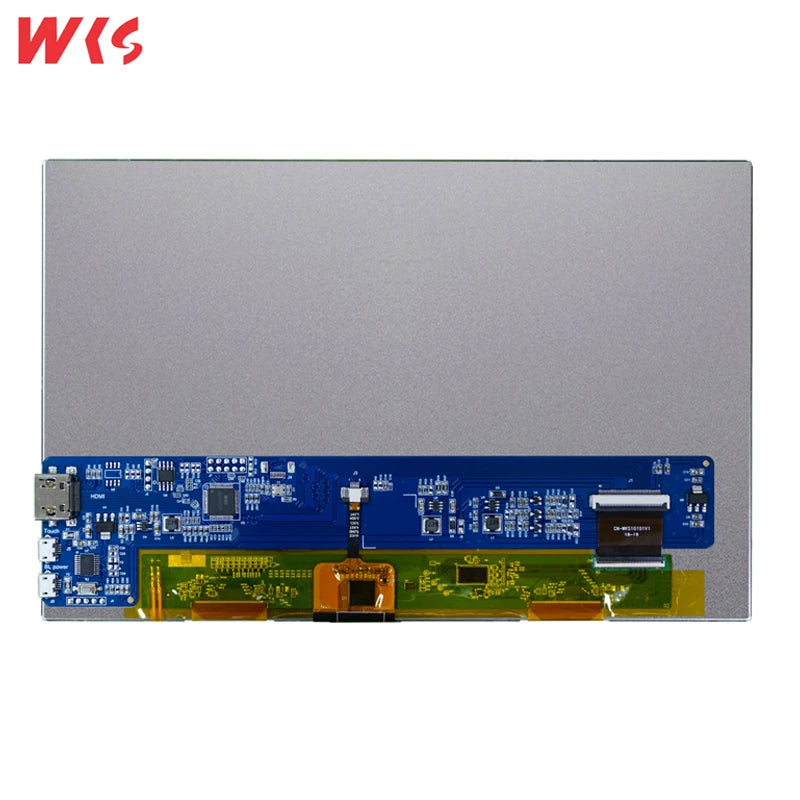

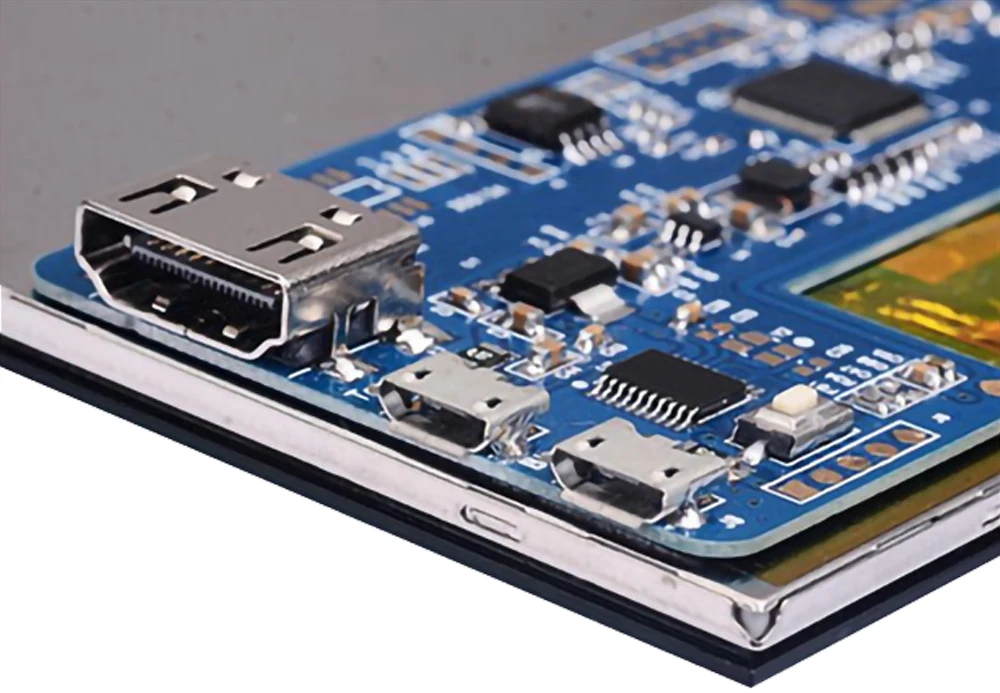

1.The HDMI port is for display unit only.

2.The USB1 port is for the TOUCH and the power supply the for other circuits expect backlight.

3.The USB2 port is the power supply for the backlight unit only.

Matters needing attention：When hot plugging, first plug in two USB, and then plug in HDMI.

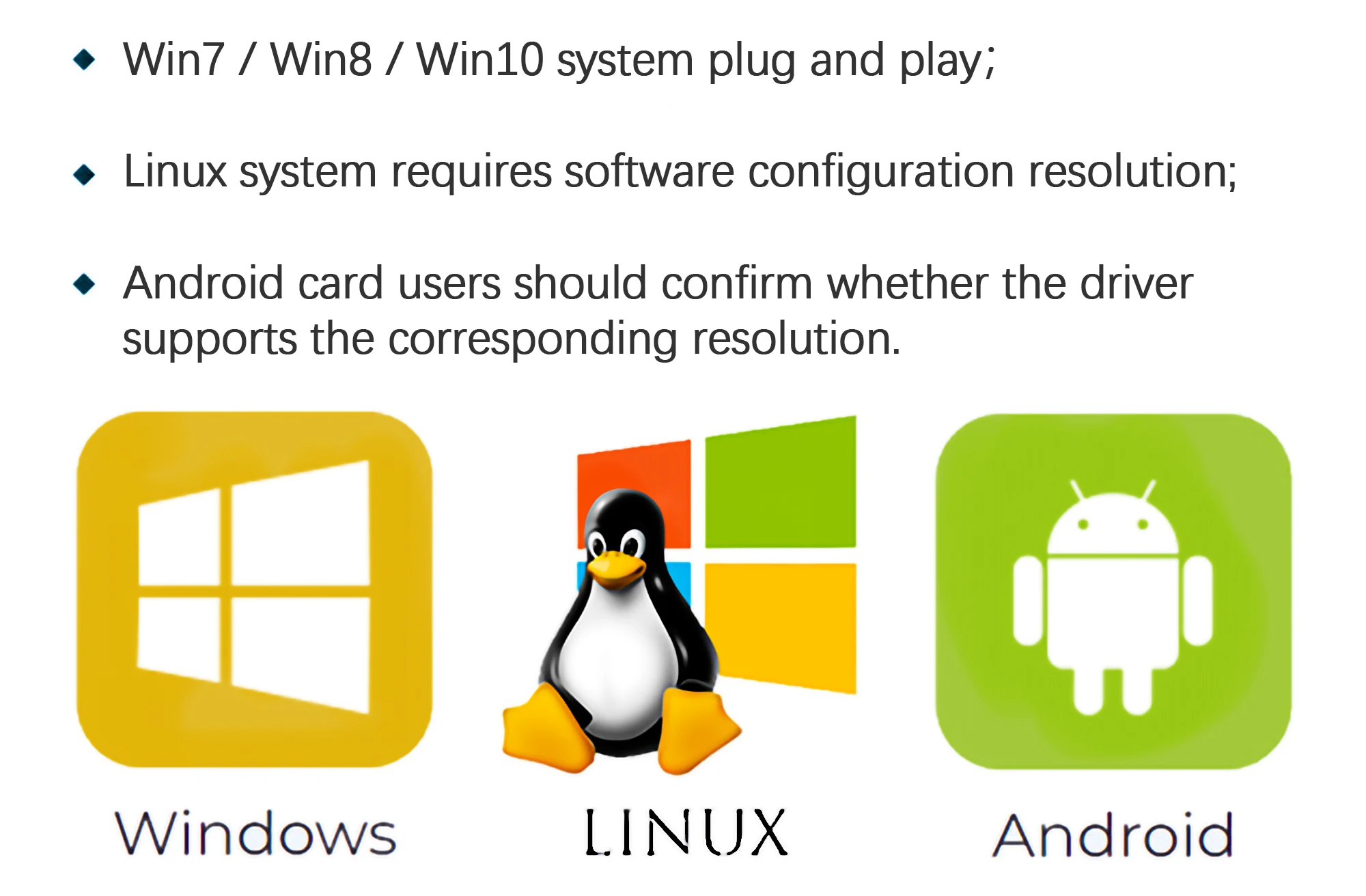

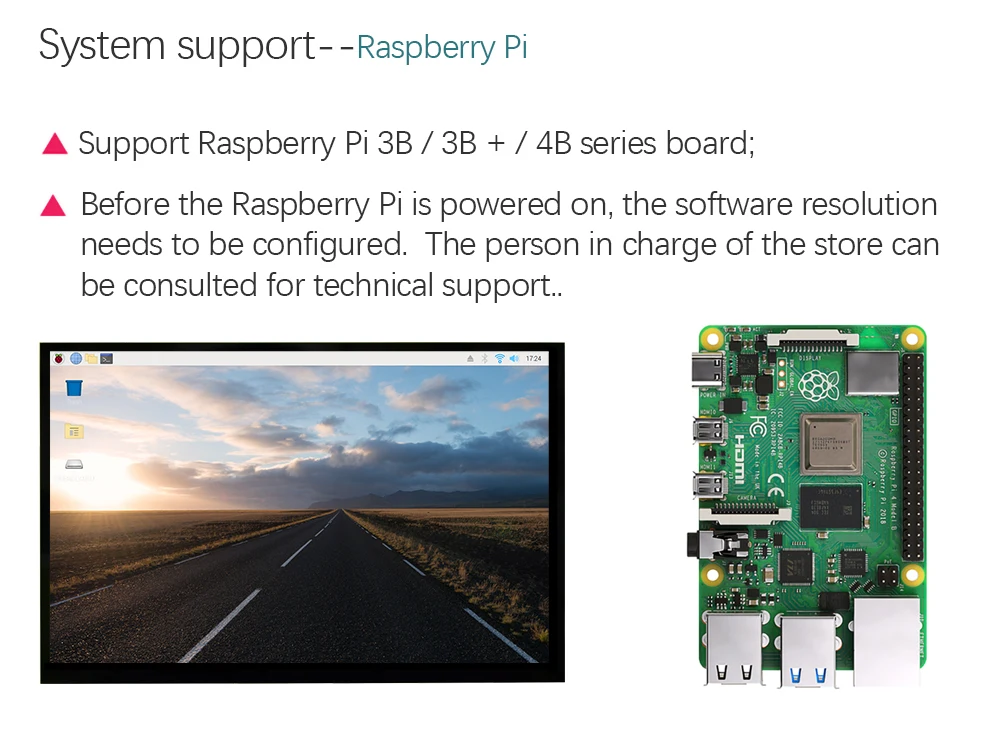

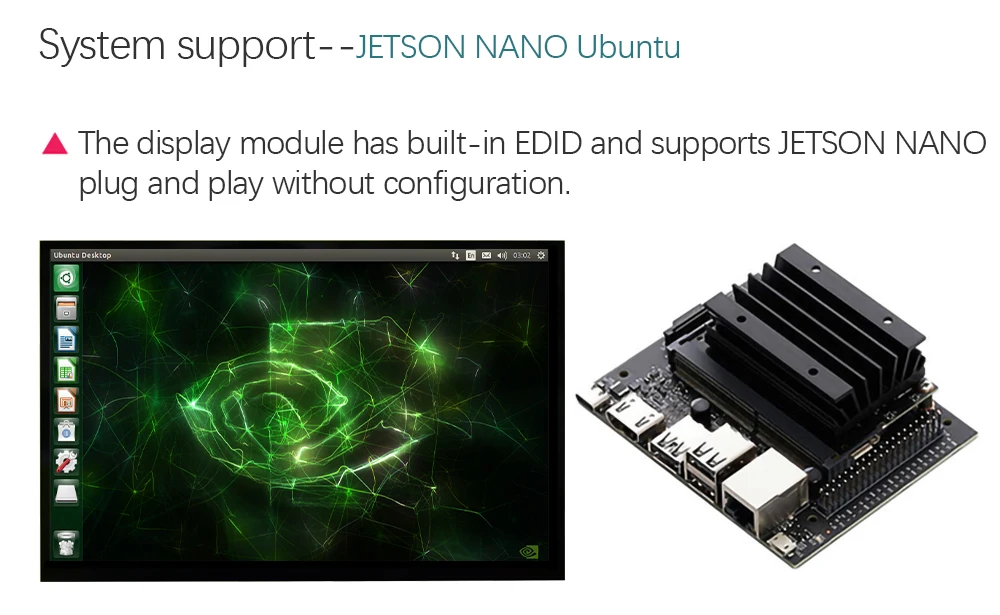

System support

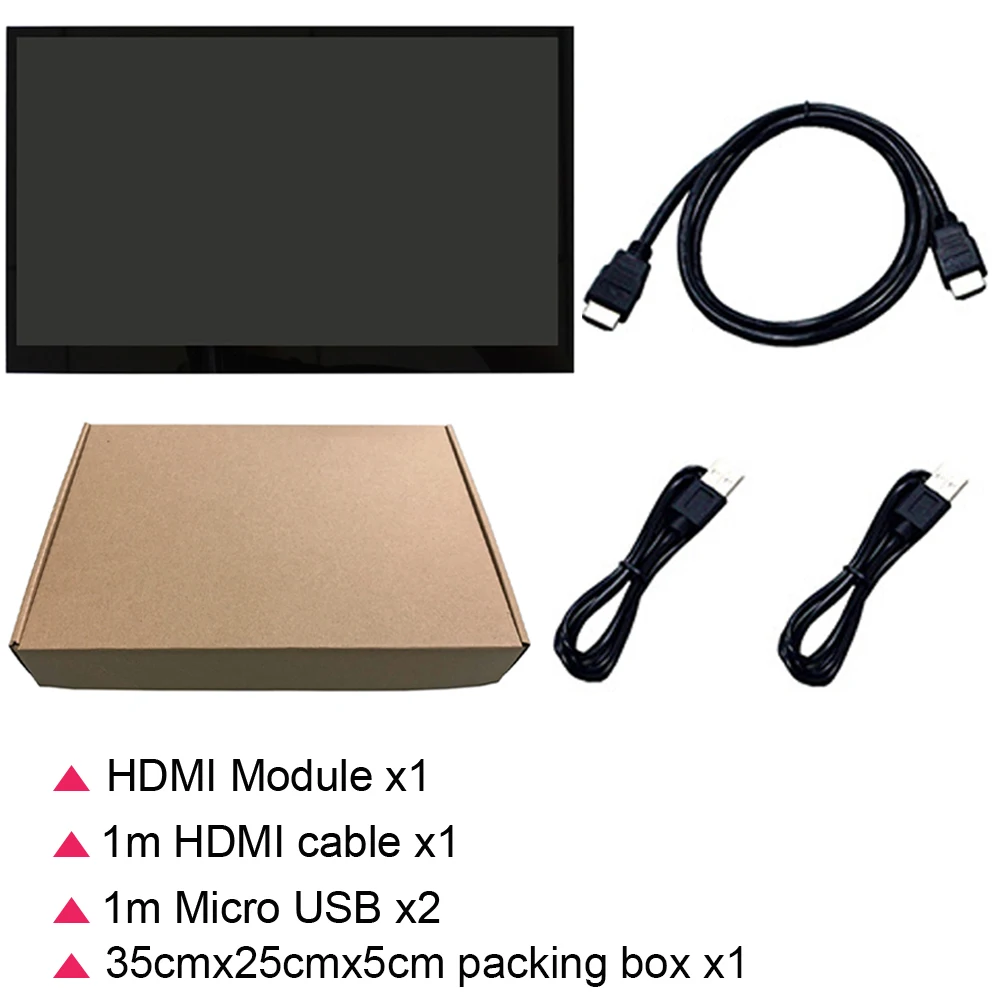

Product packaging list

HDMI Interface Display Module Product List
Size	Module Model	Resolution	Touch type
4.3 Inch	WKS43WV003-WCT	800(RGB)×480	CTP
		WKS43WV005-WOT	800(RGB)×480	NO
		WKS43WV020-WCT	800(RGB)×480	CTP
		WKS43WV021-WCT	800(RGB)×480	CTP
		WKS43WV028-WOT	800(RGB)×480	NO
5 Inch	WKS50HD001-WCT	1280(RGB)×720	CTP
		WKS50WV012-WCT	800(RGB)×480	CTP
		WKS50WV015-WOT	800(RGB)×480	NO
		WKS50WV017-WCT	800(RGB)×480	CTP
		WKS50WV018-WOT	800(RGB)×480	NO
6.86 Inch	WKS68VG001-WCT	480(RGB)×1280	CTP
		WKS68VG004-WCT	480(RGB)×1280	CTP
		WKS68VG006-WOT	480(RGB)×1280	NO
7 Inch	WKS70WSV002-WCT	1024(RGB)×600	CTP
		WKS70WSV006-WCT	1024(RGB)×600	CTP
		WKS70WSV012-WOT	1024(RGB)×600	NO
		WKS70WSV013-WOT	1024(RGB)×600	NO
		WKS70WSV017-WCT	1024(RGB)×600	CTP
		WKS70WSV022-WCT	1024(RGB)×600	CTP
		WKS70WSV023-WOT	1024(RGB)×600	NO
		WKS70WSV040-WCT	1024(RGB)×600	CTP
		WKS70WSV041-WOT	1024(RGB)×600	NO
		WKS70WSV042-WCT	1024(RGB)×600	CTP
		WKS70WSV043-WOT	1024(RGB)×600	NO
		WKS70WSV044-WCT	1024(RGB)×600	CTP
		WKS70WSV046-WCT	1024(RGB)×600	CTP
		WKS70WSV048-WCT	1024(RGB)×600	CTP
		WKS70WSV049-WCT	1024(RGB)×600	CTP
		WKS70WSV052-WOT	1024(RGB)×600	NO
		WKS70WSV057-WOT	1024(RGB)×600	NO
		WKS70WSV058-WCT	1024(RGB)×600	CTP
		WKS70WSV061-WOT	1024(RGB)×600	NO
8 Inch	WKS80XGA002-WCT	1024(RGB)×768	CTP
		WKS80XGA003-WOT	1024(RGB)×768	NO
10.1 Inch	WKS101WSV002-WCT	1024(RGB)×600	CTP
		WKS101WX002-WCT	1280(RGB)×800	CTP
		WKS101WX003-WCT	1280(RGB)×800	CTP
		WKS101WX006-WCT	1280(RGB)×800	CTP
		WKS101WX008-WCT	1280(RGB)×800	CTP
		WKS101WX009-WCT	1280(RGB)×800	CTP
		WKS101WX010-WOT	1280(RGB)×800	NO
		WKS101WUX019-WCT	1920(RGB)×1200	CTP
		WKS101WUX20-WOT	1920(RGB)×1200	NO
15.6 Inch	WKS156FHD001-WCT	1920(RGB)×1080	CTP

Customization

We can provide professional customized services .The customization cost is as follows, and the customization fee will be returned after mass production of 2000-10000 pcs according to the product type .

Custom fee	Touch Screen	400 USD
		Backlight	2000USD
		FPC	400 USD
		PCB	500 USD

Company Profile

Business type	Manufacturer & Wholesaler
Product	LCD Display,TFT Module,Resistive & Capacitive touch screen,Control board
History	Over 10 years experience in display solutions & manufacture
Annual sales	Over $100 millions
Factory scale	10000 square meters production workshop , 1.5 million pcs /month production capacity

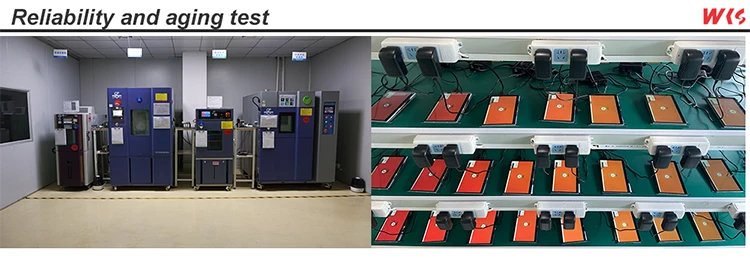

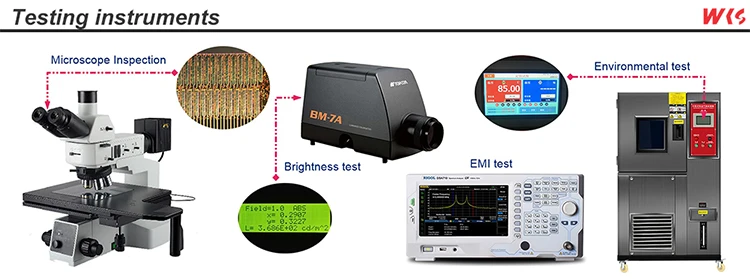

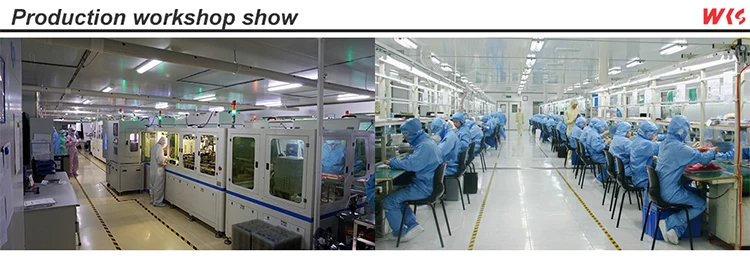

Production lines	12 Production lines
Employees	Over 300 skillful workers with many years experience
R & D capabilities	22 designers with more than 10 years experience
Design patent	Over 30 design patent certificates
Application area	MID, industry POS, household appliances, automobiles, industrial control, medical care, education, electric power, biometrics, 3D printing, new energy and etc
Certificate	ISO 9001,RoHS,RECH, CE etc

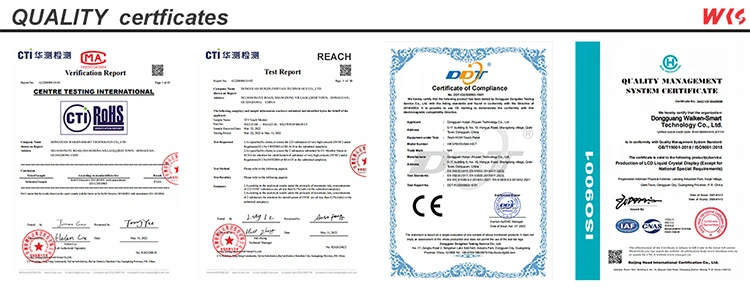

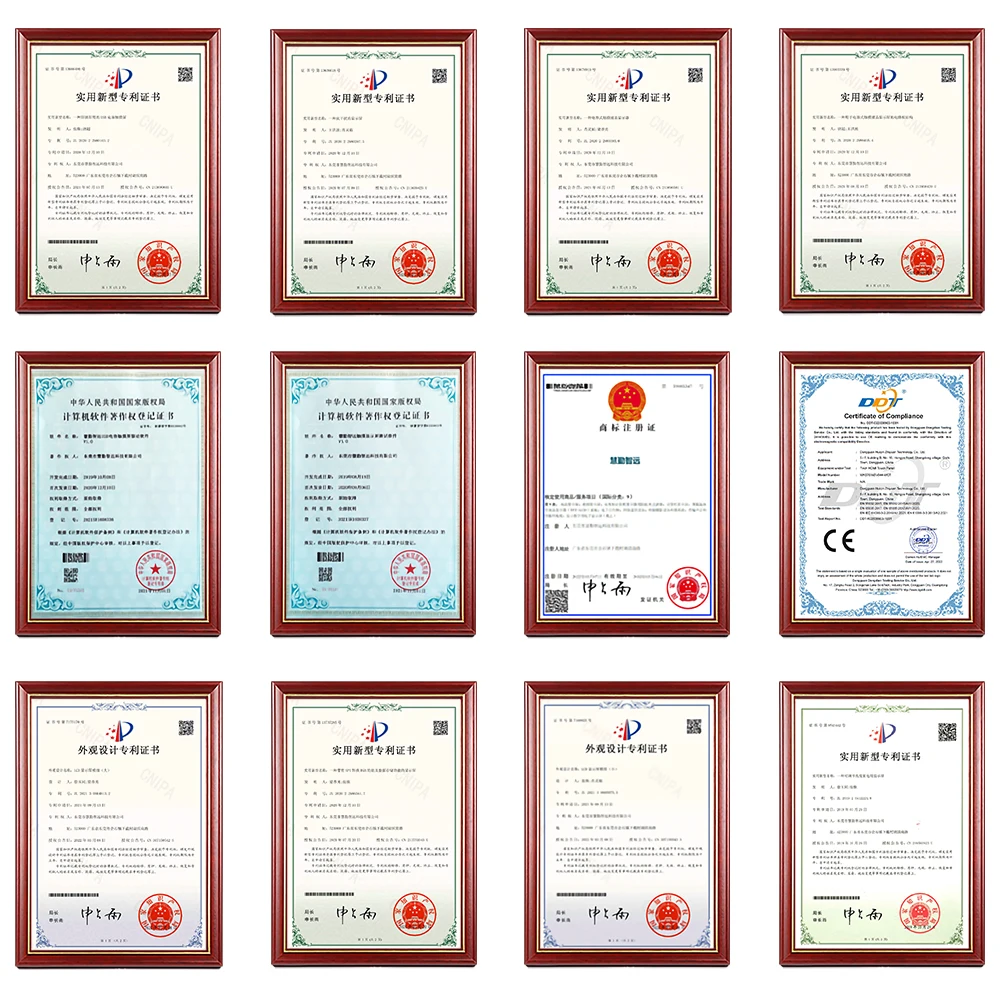

Certifications
